HAproxy+Keepalived高可用负载均衡部署

213次阅读
没有评论

共计 3910 个字符,预计需要花费 10 分钟才能阅读完成。

HAproxy+Keepalived 高可用负载均衡部署

一、安装 haproxy 软件
wget http://haproxy.1wt.eu/download/1.4/src/haproxy-1.4.22.tar.gz
tar zxvf haproxy-1.4.22.tar.gz
cd haproxy-1.4.22
make TARGET=linux26 PREFIX=/usr/local/haproxy
make install PREFIX=/usr/local/haproxy
cd /usr/local/haproxy
mkdir conf
cd conf

二、在 /usr/local/haproxy/conf/ 目录下创建配置文件(haproxy.cfg)
global
        maxconn 20480
        chroot /usr/local/haproxy
        uid 99
        gid 99
        daemon
        quiet
        nbproc 1
        stats socket /usr/local/haproxy/haproxy.stat mode 666
        log    127.0.0.1 local3
        pidfile  /usr/local/haproxy/haproxy.pid
        ulimit-n 65535
defaults
        log    global
        mode    http
        maxconn 20480
        #option  httplog clf
        option  httplog
        option  dontlognull
        option httpclose
        option abortonclose
        option redispatch
        retries 3
      monitor-uri /site_status
        contimeout      5000
        clitimeout      50000
        srvtimeout      50000
frontend WEB-BANMA-cluster
        bind *:80
        default_backend web_pool

backend web_pool
        balance source
#      balance leastconn
        cookie  SERVERID
        option forwardfor
        option  httpchk GET /check.html
        server  app1_1 192.168.10.15:80  cookie app1inst1 check inter 2000 rise 2 fall 5 weight 3
        server  app1_2 192.168.10.16:80  cookie app1inst2 check inter 2000 rise 2 fall 5 weight 6
        stats refresh 5s
        stats uri /status
        stats realm Haproxy\ statistics
        stats auth admin:admin123
        stats admin if TRUE

三、如何给 haproxy 添加日志记录
①、如果是 CentOS6.0 以下版本配置
一、vi /etc/syslog.conf
local3.*    /var/log/haproxy.log
二、vi /etc/sysconfig/syslog
SYSLOGD_OPTIONS=”-m 0″
改成
SYSLOGD_OPTIONS=”-r -m 0″ #enables logging from remote machines
三、重启动
/etc/init.d/syslog restart

②、Centos6.0 或 centos6.0 以上版本

一、配置日志
vi /etc/rsyslog.conf(去掉下面两行前的注释,一定要去掉,否则不记录日志)
$ModLoad imudp.so
$UDPServerRun 514
## 添加日志记录
local3.*        /var/log/haproxy.log(添加 haproxy 日志记录文件)

二、重启动服务
/etc/init.d/rsyslog restart

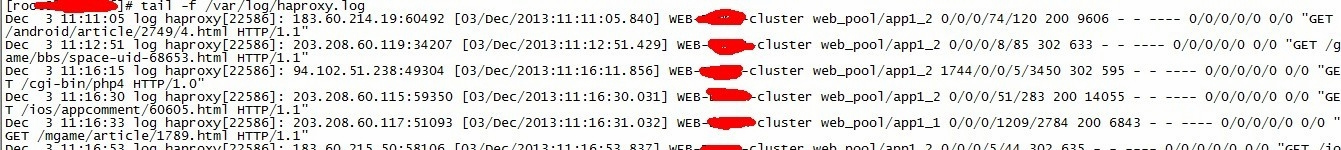

四、启动 haproxy,进行检查,并查看日志
/usr/local/haproxy/sbin/haporxy -f /usr/local/haproxy/conf/haproxy.cfg

HAproxy+Keepalived 高可用负载均衡部署

#######################################################################################
一、keepalived 安装(主备机器安装方法一样)
wget http://rpm5.org/files/popt/popt-1.16.tar.gz
tar zxvf popt-1.16.tar.gz
cd popt-1.16
./configure
make && make install
wget http://www.keepalived.org/software/keepalived-1.2.7.tar.gz
tar zxvf keepalived-1.2.7.tar.gz
cd keepalived-1.2.7
./configure –prefix=/usr/local/keepalived
make && make install

二、初始化脚本
cp /usr/local/keepalived/etc/rc.d/init.d/keepalived /etc/init.d/keepalived
cp /usr/local/keepalived/sbin/keepalived /usr/sbin/
cp /usr/local/keepalived/etc/sysconfig/keepalived /etc/sysconfig/
mkdir -p /etc/keepalived/
ln -s  /usr/local/keepalived/etc/keepalived/keepalived.conf /etc/keepalived/keepalived.conf
chmod +x /etc/init.d/keepalived

三、主机器配置文件(vi /etc/keepalived/keepalived.conf),备机器只要(修改有注释地方即可)
! Configuration File for keepalived
global_defs {
router_id LVS_DEVEL
}
vrrp_script chk_http_port {
script “/usr/local/keepalived/check_haproxy.sh”
interval 2
weight 2
}
vrrp_instance VI_1 {
        state MASTER  (备机,改 MASTER 为 BACKUP)
        interface eth0
        virtual_router_id 51
        priority 150(备机,改 150 为 149)
        advert_int 1
        authentication {
        auth_type PASS
        auth_pass 1111
        }
        track_script {
                chk_http_port
        }
        virtual_ipaddress {
        10.1.1.60
        }
}

四、检测 haproxy 状态的文件
status=$(ps aux|grep haproxy | grep -v grep | grep -v bash | wc -l)
if [“${status}” = “0” ]; then
  /etc/init.d/haproxy start
  status2=$(ps aux|grep haproxy | grep -v grep | grep -v bash |wc -l)
  if [“${status2}” = “0”  ]; then
      /etc/init.d/keepalived stop
  fi
fi

五、启动 keepalived
/etc/init.d/keepalived start

HAproxy 的详细介绍:请点这里
HAproxy 的下载地址:请点这里

推荐阅读:

Haproxy+Keepalived 搭建 Weblogic 高可用负载均衡集群 http://www.linuxidc.com/Linux/2013-09/89732.htm

Keepalived+HAProxy 配置高可用负载均衡 http://www.linuxidc.com/Linux/2012-03/56748.htm

CentOS 6.3 下 Haproxy+Keepalived+Apache 配置笔记 http://www.linuxidc.com/Linux/2013-06/85598.htm

Haproxy + KeepAlived 实现 WEB 群集 on CentOS 6 http://www.linuxidc.com/Linux/2012-03/55672.htm

Haproxy+Keepalived 构建高可用负载均衡 http://www.linuxidc.com/Linux/2012-03/55880.htm
