HA 高可用集群部署（ricci+luci+fence_virtd) 双机热备

主机环境 RedHat6.5 64 位
实验环境 服务端 1 ip 172.25.29.1  主机名：server1.example.com  ricci
    服务端 2 ip 172.25.29.2    主机名：server2.example.com  ricci
    管理端 1 ip 172.25.29.3    主机名：server3.example.com  luci
    管理端 2 ip 172.25.29.250    fence_virtd
防火墙状态：关闭

1. 安装 ricci、luci 及创建节点
1. 安装、开启 ricci（服务端 1）
[root@server1yum.repos.d]# vim dvd.repo      #安装之前，修改 yum 源
#repos on instructor for classroom use
#Main rhel6.5 server
[base]
name=InstructorServer Repository
baseurl=http://172.25.29.250/rhel6.5
gpgcheck=0

#HighAvailability rhel6.5
[HighAvailability]
name=InstructorHighAvailability Repository
baseurl=http://172.25.29.250/rhel6.5/HighAvailability
gpgcheck=0

#LoadBalancer packages
[LoadBalancer]
name=InstructorLoadBalancer Repository
baseurl=http://172.25.29.250/rhel6.5/LoadBalancer
gpgcheck=0

#ResilientStorage
[ResilientStorage]
name=InstructorResilientStorage Repository
baseurl=http://172.25.29.250/rhel6.5/ResilientStorage
gpgcheck=0

#ScalableFileSystem
[ScalableFileSystem]
name=InstructorScalableFileSystem Repository
baseurl=http://172.25.29.250/rhel6.5/ScalableFileSystem
gpgcheck=0
[root@server1yum.repos.d]# yum clean all        #清除缓存
Loadedplugins: product-id, subscription-manager
Thissystem is not registered to Red Hat Subscription Management. You can usesubscription-manager to register.
Cleaningrepos: HighAvailability LoadBalancer ResilientStorage
              : ScalableFileSystem base
Cleaningup Everything

[root@server1yum.repos.d]# yum install ricci -y    #安装 ricci
[root@server1yum.repos.d]# passwd ricci      #修改 ricci 密码
Changingpassword for user ricci.
Newpassword:
BADPASSWORD: it is based on a dictionary word
BADPASSWORD: is too simple
Retypenew password:
passwd:all authentication tokens updated successfully.
[root@server1yum.repos.d]# /etc/init.d/ricci start      #开启 ricci
Startingsystem message bus:                              [OK]
Startingoddjobd:                                        [OK]
generatingSSL certificates…  done
GeneratingNSS database…  done
Startingricci:                                          [OK]
[root@server1yum.repos.d]# chkconfig ricci  on    #开机自动开启
服务端 2 和服务端 1 做相同的操作

2. 安装、开启 luci（管理端 1）
安装之前，与服务端 1 一样修改 yum 源
[root@server3yum.repos.d]# yum install luci -y      #安装 luci
[root@server3yum.repos.d]# /etc/init.d/luci start    #开启 ruci
Startluci…                                            [OK]
Pointyour web browser to https://server3.example.com:8084 (or equivalent) to accessluci

在登陆之前，必须有 DNS 解析，也就是在 /etc/hosts 添加
例如: 172.25.29.3        server3.example.com

3．创建节点
登陆 https://server3.example.com:8084      #luci 开放的是 8084 端口

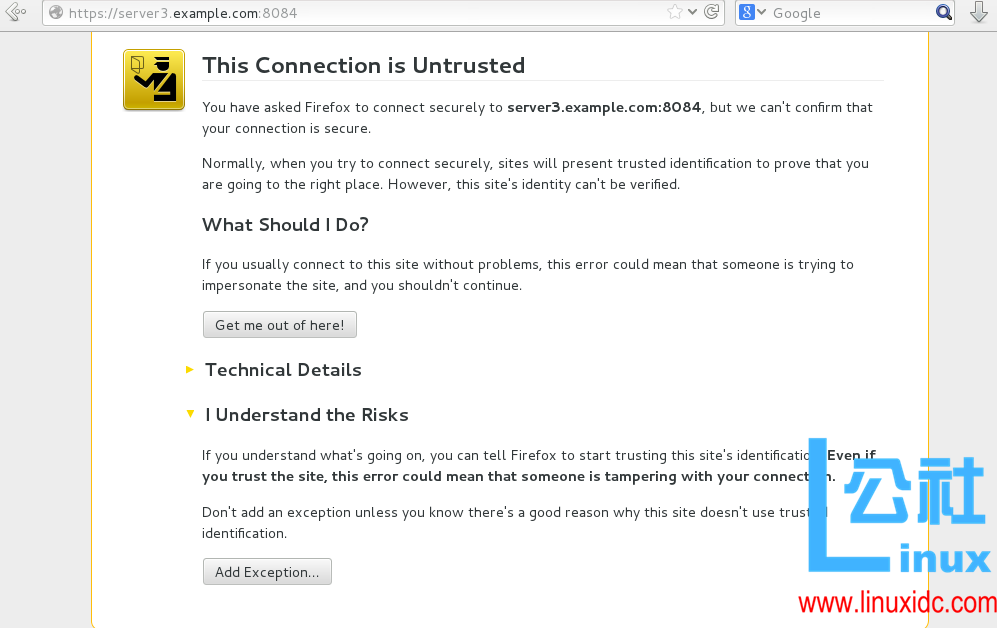

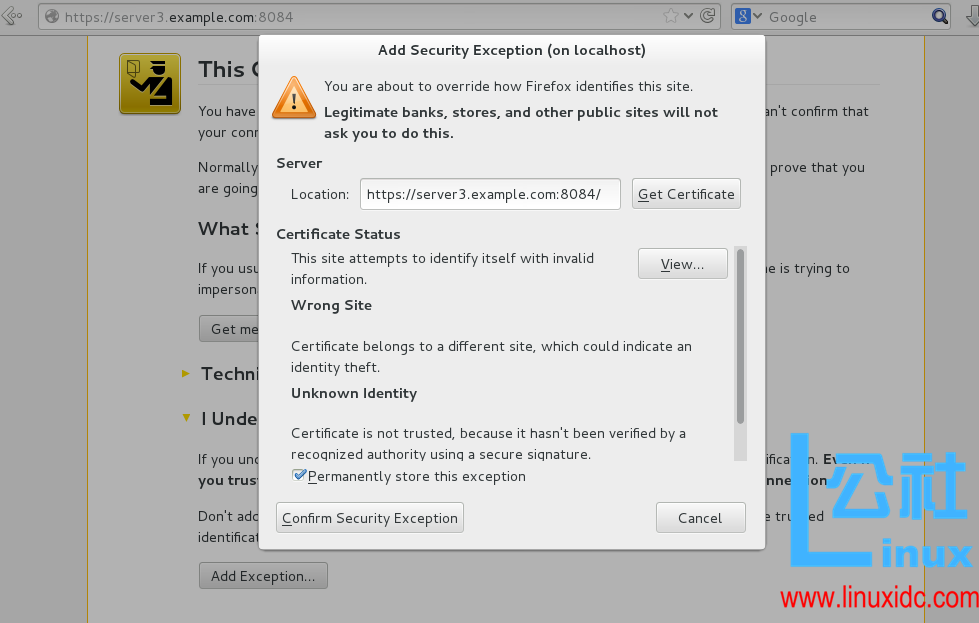

安全证书，选 I Understand Risks

点击 Confirm Security Excepton

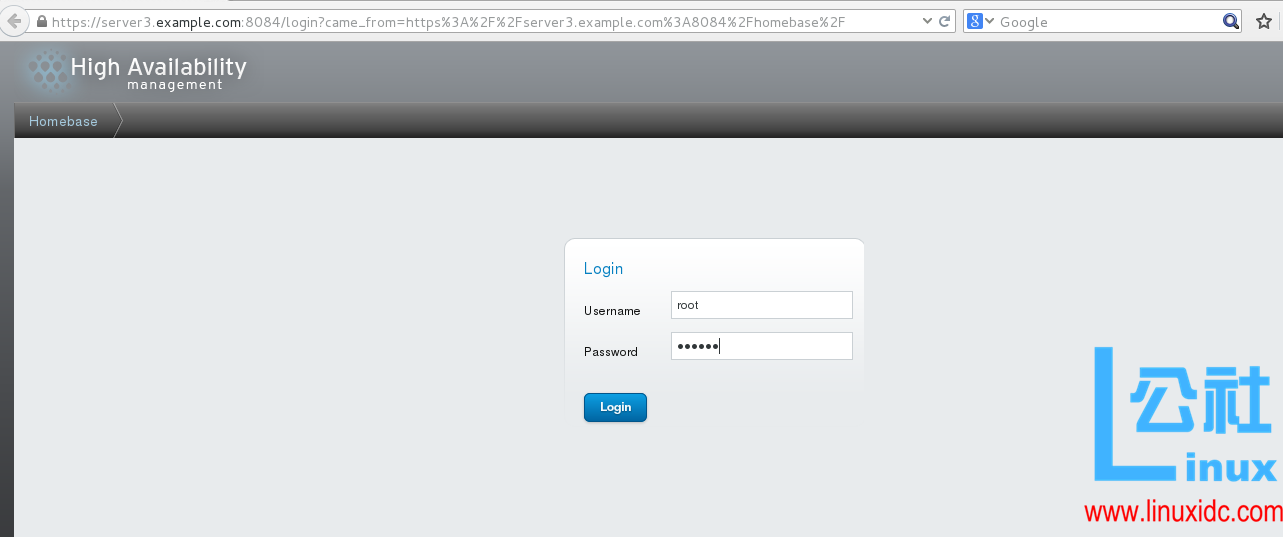

进入到管理服务器的 luci 界面，登陆时的密码是安装 luci 虚拟机的 root 密码

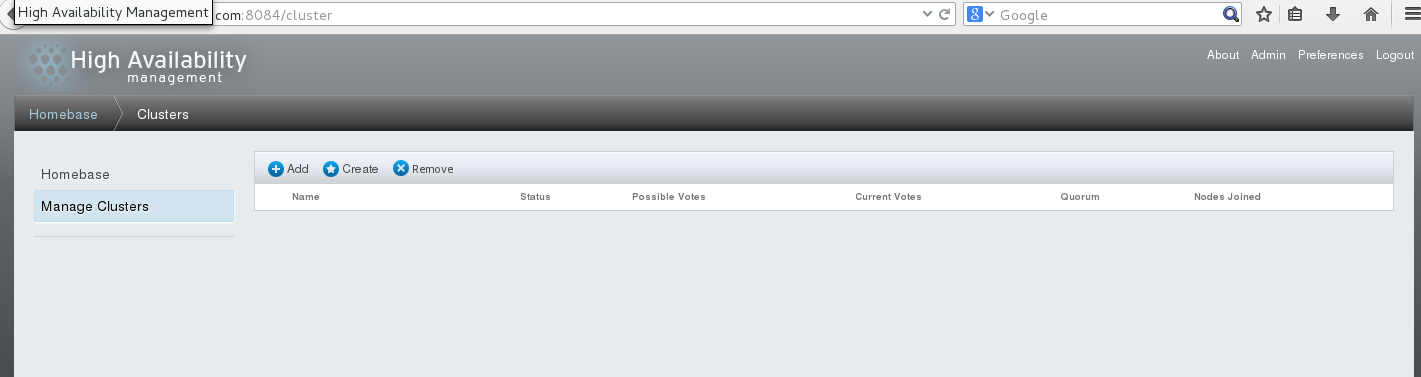

选择 Manage Clusters，之后点击 Create 创建集群

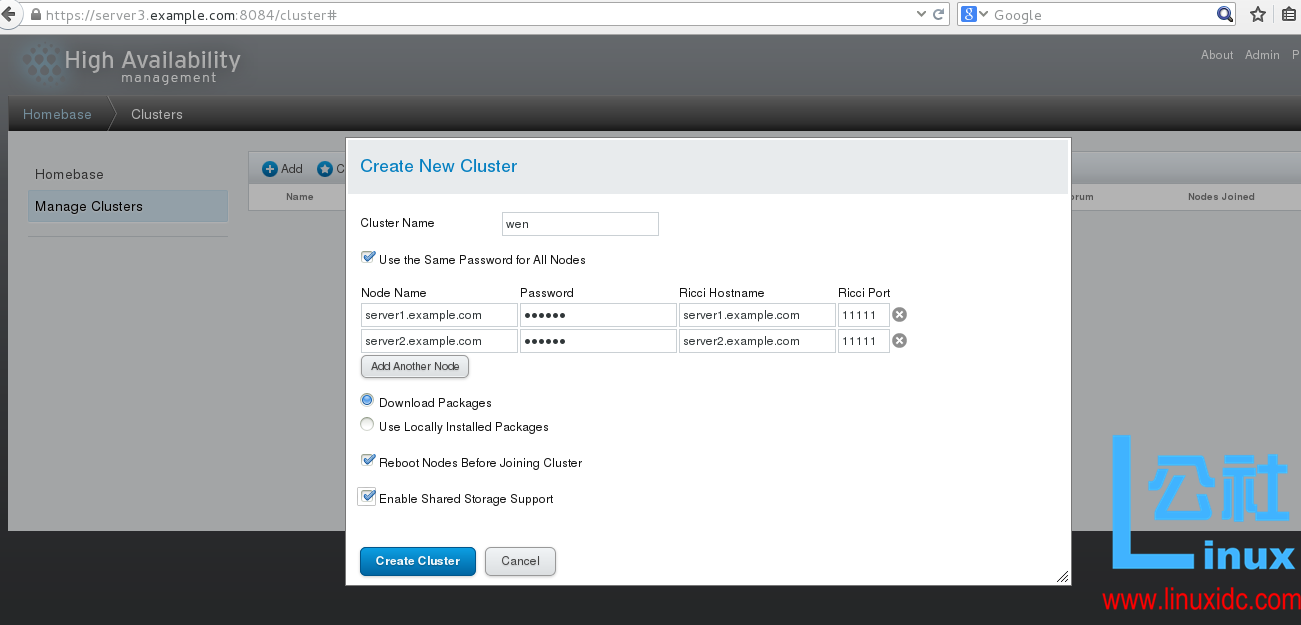

如图，Cluster Name 创建集群的名称，勾选 Use the Same Passwordfor All Nodes，指的是所有结点所用的是相同的密码，填写要创建的结点名称和密码，名称是服务端的主机名，密码是上面提到的 passwd ricci 的修改的密码。勾选 Download PackagesReboot 和 Enable，选择 Create Cluster

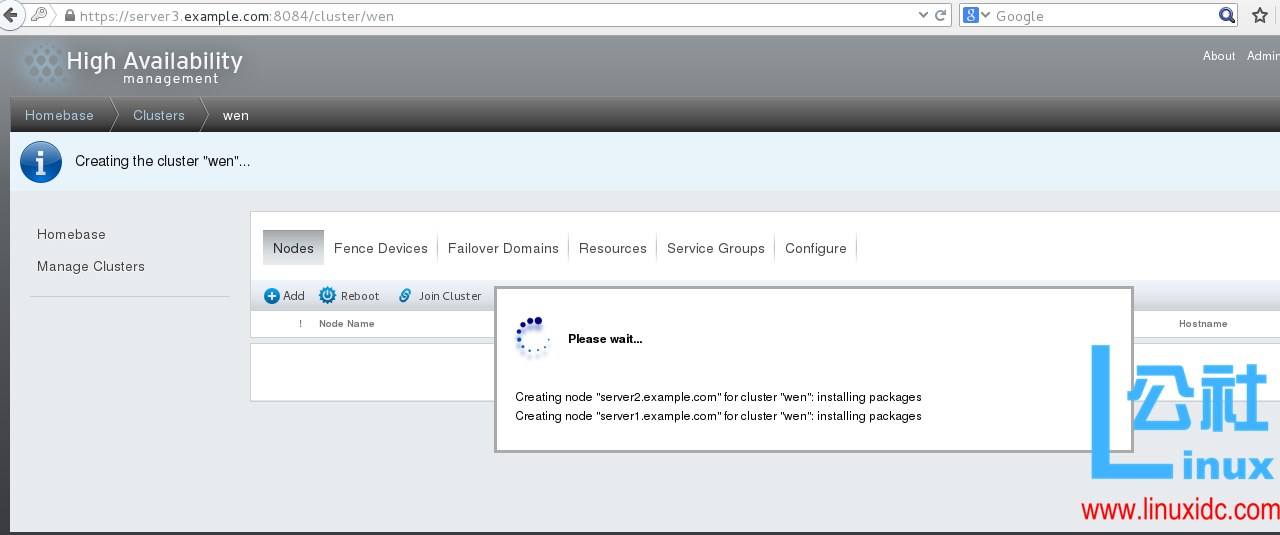

正在创建节点，如图

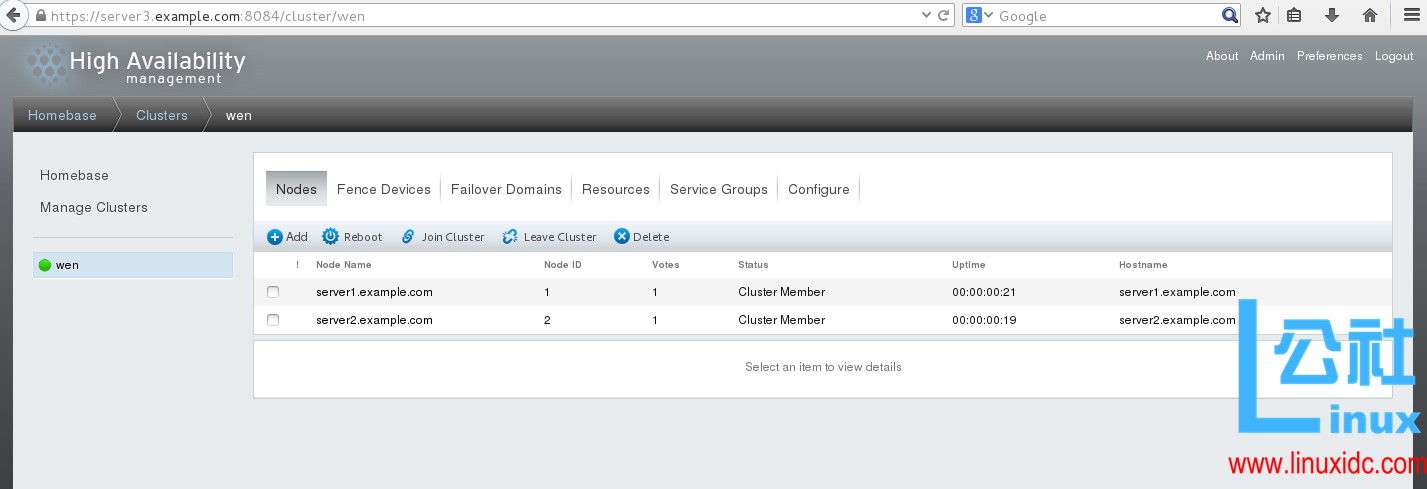

创建完成，如图

创建完成之后，在服务端 1 和服务端 2 的 /etc/cluster/ 下会生成 cluster.conf 文件，查看如下
[root@server1~]# cd /etc/cluster/
[root@server1cluster]# ls
cluster.conf  cman-notify.d
[root@server1cluster]# cat cluster.conf  #查看文件内容
<?xmlversion=”1.0″?>
<clusterconfig_version=”1″ name=”wen”>        #集群名称
    <clusternodes>
      <clusternodename=”server1.example.com” nodeid=”1″/>    #结点 1
      <clusternodename=”server2.example.com” nodeid=”2″/>    #结点 2
    </clusternodes>
    <cman expected_votes=”1″two_node=”1″/>
    <fencedevices/>
    <rm/>
</cluster>

2. 安装 fence_virtd、创建 fence 设备
1. 安装、开启 fence_virtd（管理端 2）
[root@foundation29Desktop]# yum install fence-virtd* -y
[root@foundation29Desktop]# fence_virtd -c    #设置
Modulesearch path [/usr/lib64/fence-virt]:

Availablebackends:
    libvirt 0.1
Availablelisteners:
    multicast 1.2
    serial 0.4

Listenermodules are responsible for accepting requests
fromfencing clients.

Listenermodule [multicast]:        #多播

Themulticast listener module is designed for use environments
wherethe guests and hosts may communicate over a network using
multicast.

Themulticast address is the address that a client will use to
sendfencing requests to fence_virtd.

MulticastIP Address [225.0.0.12]:            #多播 ip

Usingipv4 as family.

MulticastIP Port [1229]:      #多播端口号

Settinga preferred interface causes fence_virtd to listen only
onthat interface.  Normally, it listens onall interfaces.
Inenvironments where the virtual machines are using the host
machineas a gateway, this *must* be set (typically to virbr0).
Setto ‘none’ for no interface.

Interface[br0]:

Thekey file is the shared key information which is used to
authenticatefencing requests.  The contents of thisfile must
bedistributed to each physical host and virtual machine within
acluster.

KeyFile [/etc/cluster/fence_xvm.key]:    #key 文件的路径

Backendmodules are responsible for routing requests to
theappropriate hypervisor or management layer.

Backendmodule [libvirt]:

Configurationcomplete.

===Begin Configuration ===
backends{
    libvirt {
      uri = “qemu:///system”;
    }

}
listeners{
    multicast {
      port = “1229”;
      family = “ipv4”;
      interface = “br0”;
      address = “225.0.0.12”;
      key_file =”/etc/cluster/fence_xvm.key”;
    }

}
fence_virtd{
    module_path =”/usr/lib64/fence-virt”;
    backend = “libvirt”;
    listener = “multicast”;
}

===End Configuration ===
Replace/etc/fence_virt.conf with the above [y/N]? y
[root@foundation29Desktop]# mkdir /etc/cluster    #创建 cluster 目录
[root@foundation29Desktop]# cd /etc/cluster/
[root@foundation29cluster]# dd if=/dev/urandom of=fence_xvm.key bs=128 count=1    #生成文件
1+0records in
1+0records out
128bytes (128 B) copied, 0.000167107 s, 766 kB/s
[root@foundation29Desktop]# scp fence_xvm.key root@172.25.29.1:/etc/cluster/  #将文件传给服务端 1
root@172.25.29.2’spassword:
fence_xvm.key                                100%  512    0.5KB/s  00:00

测试
[root@server1cluster]# ls    #查看
cluster.conf  cman-notify.d fence_xvm.key
以同样的方法传送给服务端 2
[root@foundation29Desktop]# systemctl start fence_fence_virtd.service    #开启 fence（由于管理端 2 是 7.1 的系统，开启时的命令不太一。如果是 6.5 系统，则用 /etc/init.d/fence_virtd start 即可）

2. 创建 fence 设备

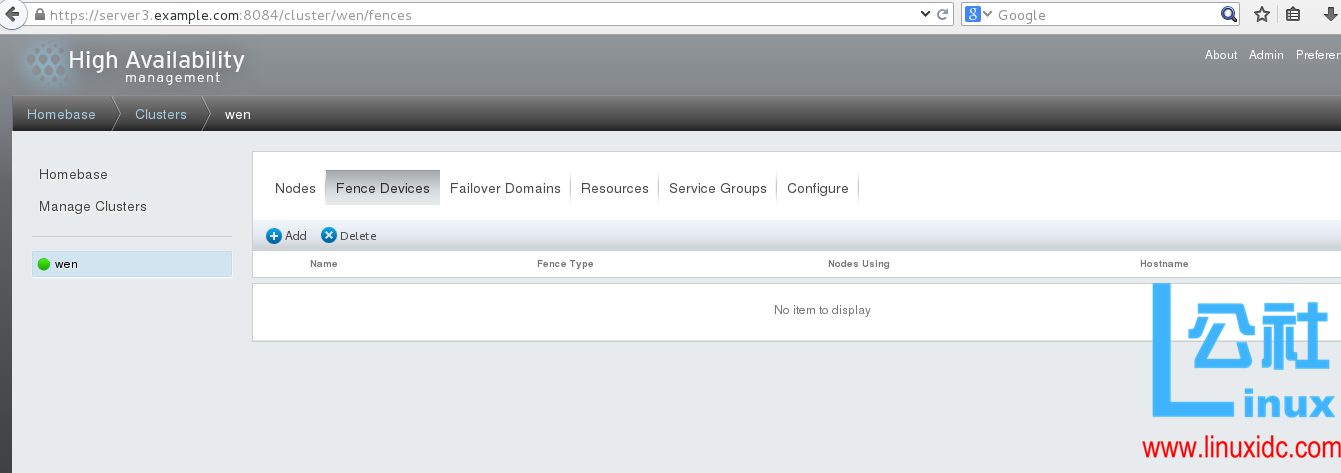

选择 Fance Devices

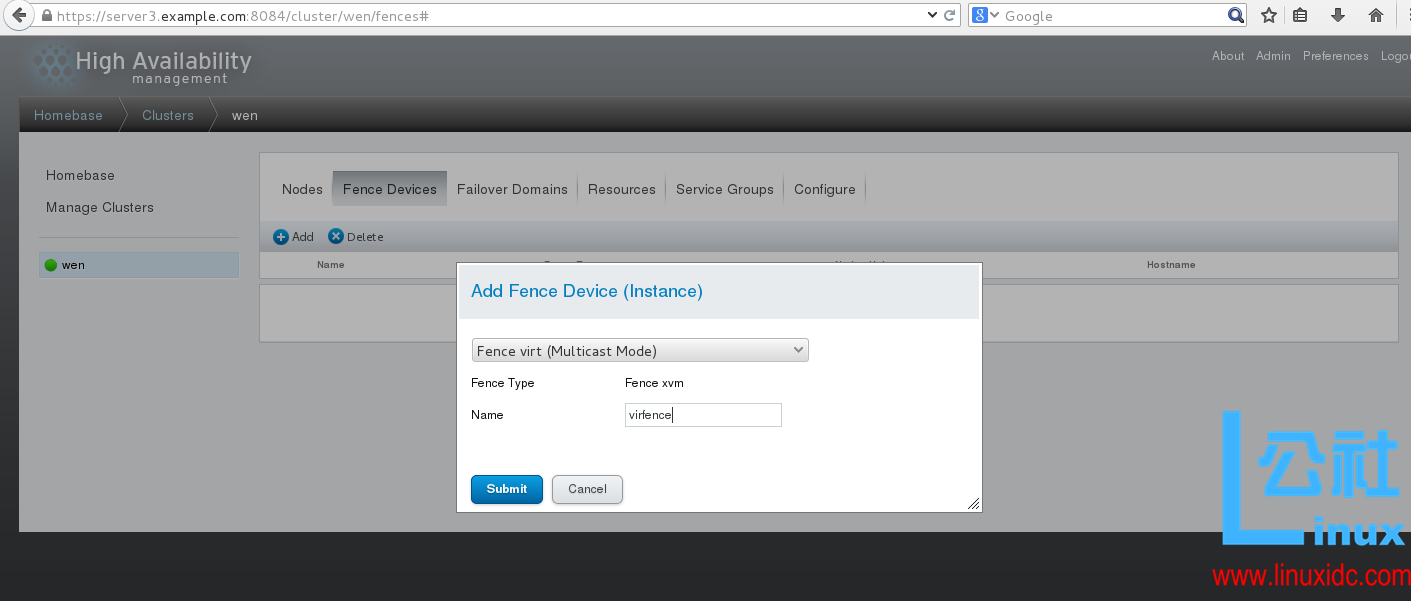

选择 Add, 如下图，Name 指的是添加 fence 设备的名称，写完之后选择 Submit

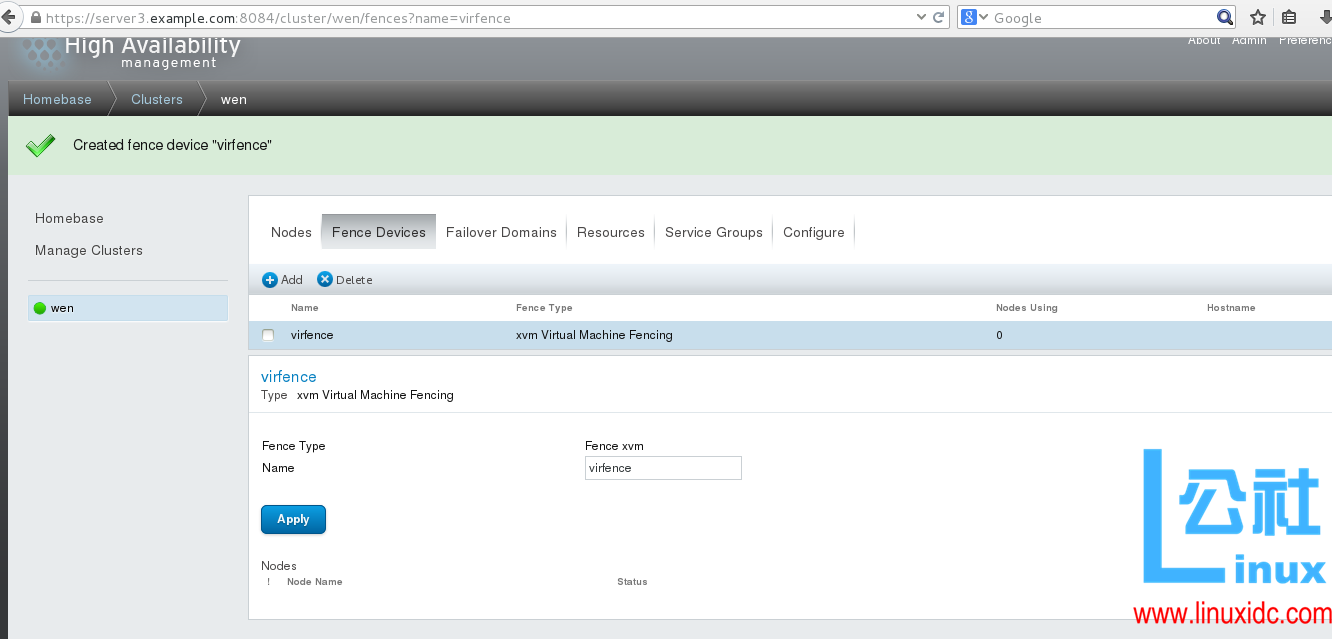

结果

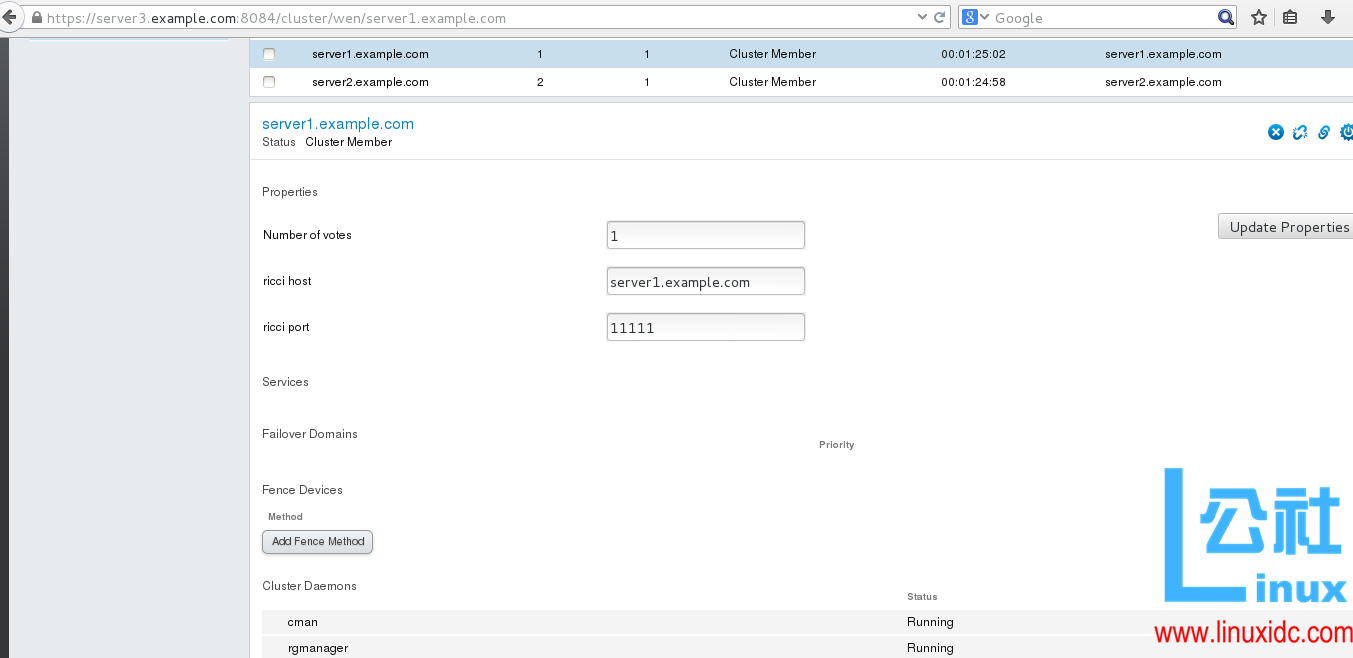

选择 server1.example.com

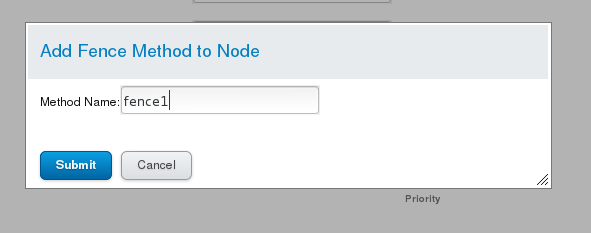

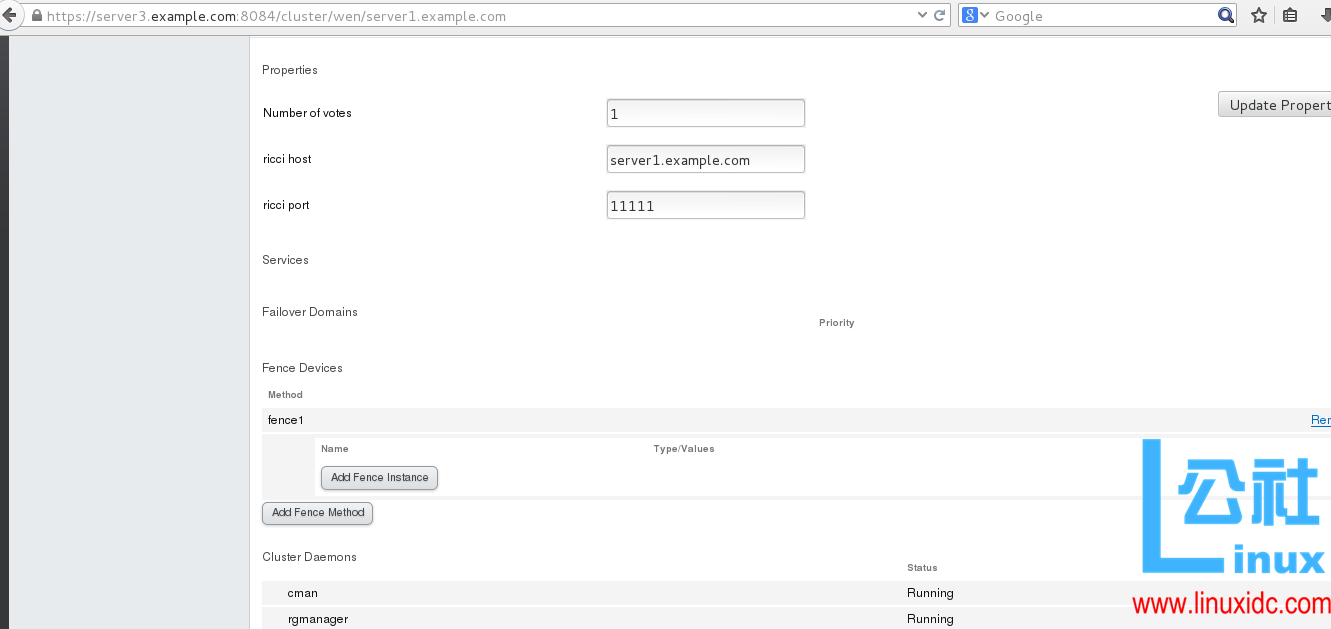

点击 Add Fence Method , 添加 Method Name

如图，选择 Add Tence Instance

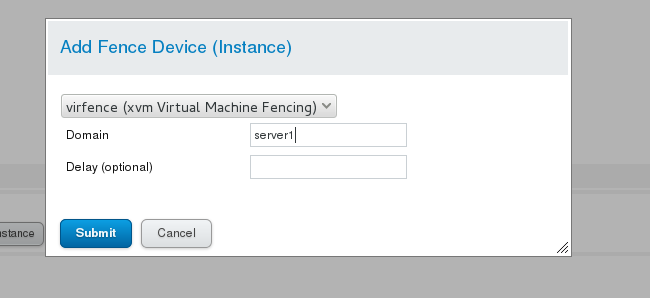

填写 Domin，选择 Submit

完成之后，服务端 2 和服务端 1 的配置相同

测试
[root@server1cluster]# fence_node server2.example.com  #测试 server2 的结点
fenceserver2.example.com success
[root@server2cluster]# fence_node server1.example.com  #测试 server1 的结点
fenceserver1.example.com success

至此，高可用集群（HA）搭建完毕，可以根据自己的需要在上面铺设自己所需要的业务。
