CentOS 配置 Nginx 反向代理

298次阅读

共计 7030 个字符，预计需要花费 18 分钟才能阅读完成。

导读	Nginx 作为反向代理服务器被广泛使用在各大互联网企业。它简单易用，可以根据业务的需求将其不同的业务类型代理至不同的服务器，将整个站点请求压力按类型分摊到不同的服务器。该方式使的整个站点请求性能得以极大的提升。本文简要描述了 Nginx 几种不同情形的代理演示，供大家参考。

一、反向代理及演示环境描述

1、反向代理

在计算机网络中，反向代理是一种代理服务器，代表客户端从一个或多个服务器检索资源。然后将这些资源返回给客户机，就像它们源自 Web 服务器本身一样。与正向代理相反，正向代理是与其关联的客户端联系任何服务器的中介，反向代理是任何客户端与其关联的服务器进行联系的中介。

有关正向代理可参考：基于 CentOS 7 配置 Nginx 正向代理

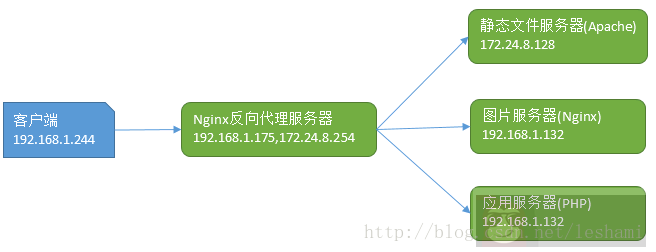

2、本演示中的几个服务器

CentOS 配置 Nginx 反向代理

二、常规反向代理配置

1、后端服务器配置 (Apache)

后端 Apache 服务器主机名及 IP

# hostname
  centos7-web.example.com
# more /etc/redhat-release
  CentOS Linux release 7.2.1511 (Core)
# ip addr|grep inet|grep global
  inet 172.24.8.128/24 brd 172.24.8.255 scope global eno16777728

# systemctl start httpd.service
# echo "This is a httpd test page.">/var/www/html/index.html
# curl http://localhost
  This is a httpd test page.

2、前端 Nginx 反向代理服务器配置

前端 Nginx 服务器主机名及 IP

# hostname
  centos7-router

  # more /etc/redhat-release
  CentOS Linux release 7.2.1511 (Core)
  # ip addr |grep inet|grep global
  inet 172.24.8.254/24 brd 172.24.8.255 scope global eno16777728
  inet 192.168.1.175/24 brd 192.168.1.255 scope global dynamic eno33554960

Nginx 版本

# nginx -V
  nginx version: nginx/1.10.2

添加一个新的配置文件用作反向代理

# vim /etc/nginx/conf.d/reverse_proxy.conf
  server {
    listen 8090;
    server_name localhost;

  location / {
    proxy_pass http://172.24.8.128; ### 反向代理核心指令

    proxy_buffers 256 4k;
    proxy_max_temp_file_size 0;
    proxy_connect_timeout 30;

    proxy_cache_valid 200 302 10m;
    proxy_cache_valid 301 1h;
    proxy_cache_valid any 1m;
    }
  }

# systemctl reload nginx
# ss -nltp|grep nginx|grep 8090
LISTEN 0 128 *:8090 *:* users:(("nginx",pid=78023,fd=8),("nginx",pid=78021,fd=8))

# curl http://localhost:8090 ## 基于本地测试
This is a httpd test page.

查看 Apache 服务器日志

# more /var/log/httpd/access_log ## 请求 IP 地址为 172.24.8.254，当从其他机器请求时也是 172.24.8.254 这个 IP
172.24.8.254 - - [30/Oct/2017:14:02:38 +0800] "GET / HTTP/1.0" 200 27 "-" "curl/7.29.0"

3、反向代理服务器及后端服务器日志格式设置

为 Nginx 服务器添加 proxy_set_header 指令，修改后如下

# grep proxy_set_header -B2 /etc/nginx/conf.d/reverse_proxy.conf
  location / {
    proxy_pass http://172.24.8.128;
    proxy_set_header X-Real-IP $remote_addr;
    }
# systemctl reload nginx.service

后端服务器 Apache 日志格式设置

# vim /etc/http/conf/httpd.conf

# LogFormat "%h %l %u %t \"%r\"%>s %b \"%{Referer}i\"\"%{User-Agent}i\"" combined #注释此行，添加下一行
    LogFormat "%{X-Real-IP}i %l %u %t \"%r\"%>s %b \"%{Referer}i\"\"%{User-Agent}i\"" combined #关键描述 {X-Real-IP}i

# ip addr|grep inet|grep global    #从 1.132 主机访问
  inet 192.168.1.244/24 brd 192.168.1.255 scope global eth0

# curl http://192.168.1.175:8090  #从 1.244 主机访问
  This is a httpd test page

#再次查看 apache 访问日志，如下，不再是代理服务器 IP 地址，此时显示为 1.244
  192.168.1.244 - - [30/Oct/2017:15:49:07 +0800] "GET / HTTP/1.0" 200 27 "-" "curl/7.19.7 (x86_64-redhat-linux-gnu)
  libcurl/7.19.7 NSS/3.14.0.0 zlib/1.2.3 libidn/1.18 libssh2/1.4.2"

二、基于目录匹配反向代理

后端服务器采用 Nginx 的配置

# more /etc/redhat-release ##os 平台及 ip 地址
  CentOS release 6.7 (Final)
# ip addr|grep eth0|grep global
  inet 192.168.1.132/24 brd 192.168.1.255 scope global eth0
# nginx -v ##nginx 版本
  nginx version: nginx/1.10.2

# mkdir -pv /usr/share/nginx/html/images ## 创建图片目录
  mkdir: created directory `/usr/share/nginx/html/images'

# cp /usr/share/backgrounds/nature/*.jpg /usr/share/nginx/html/images/. ## 复制图片文件

# cp /etc/nginx/conf.d/default.conf /etc/nginx/conf.d/default.conf.bk
# vim /etc/nginx/conf.d/default.conf ## 此处直接修改缺省配置文件

  server {
  listen 80 default_server;
  listen [::]:80 default_server;
  server_name _;
  root /usr/share/nginx/html;

# Load configuration files for the default server block.
  include /etc/nginx/default.d/*.conf;

  location / { }

  location /images {alias /usr/share/nginx/html/images; ## 此处配置了别名}

  error_page 404 /404.html;
  location = /40x.html { }

  error_page 500 502 503 504 /50x.html;
  location = /50x.html {}}

# /etc/init.d/nginx reload
Reloading nginx: [OK]

前端 Nginx 配置

# vim /etc/nginx/conf.d/reverse_proxy.conf
  server {
  listen 8090;
  server_name localhost;

  location / {
    proxy_pass http://172.24.8.128;
    proxy_set_header X-Real-IP $remote_addr;
    }

  location /images { ## 将 images 目录下的文件代理至 192.168.1.132
    proxy_pass http://192.168.1.132;
    proxy_set_header X-Real-IP $remote_addr;
    }
  }

# systemctl reload nginx

验证代理情况，在 ip 为 192.168.1.244 测试对 images 目录下的 jpg 文件请求

# ip addr|grep inet|grep global
  inet 192.168.1.244/24 brd 192.168.1.255 scope global eth0
# curl -I http://192.168.1.175:8090/images/Garden.jpg
  HTTP/1.1 200 OK
  Server: nginx/1.12.2
  Date: Tue, 31 Oct 2017 01:48:18 GMT
  Content-Type: image/jpeg
  Content-Length: 264831
  Connection: keep-alive
  Last-Modified: Mon, 30 Oct 2017 08:21:28 GMT
  ETag: "59f6e108-40a7f"
  Accept-Ranges: bytes

三、基于特定文件类型的反向代理配置

php 服务器端配置 (ip 192.168.1.132)

# ss -nltp|grep php
  LISTEN 0 128 192.168.1.132:9000 *:* users:(("php-fpm",7147,8),("php-fpm",7148,0),("php-fpm",7149,0))

# mkdir -pv /data ### 存放 php 代码
# echo "/data 192.168.1.0/24(rw)" >/etc/exports
# /etc/init.d/rpcbind start
# /etc/init.d/nfslock start
# /etc/init.d/nfs start

  # echo "< ?php phpinfo();?>" > /data/index.php

Nginx 代理端配置 (ip 192.168.1.175)

# mkdir /data
# mount -t nfs 192.168.1.132:/data /data
# ls /data
  index.php

# vim /etc/nginx/conf.d/reverse_proxy.conf
  server {
  listen 8090;
  server_name localhost;

  location / {
    proxy_pass http://172.24.8.128;
    proxy_set_header X-Real-IP $remote_addr;
    }

  location /images {
    proxy_pass http://192.168.1.132;
    proxy_set_header X-Real-IP $remote_addr;
    }

  location ~ \.php$ {
    root /data;
    fastcgi_pass 192.168.1.132:9000;
    fastcgi_index index.php;
    fastcgi_param SCRIPT_FILENAME /scripts$fastcgi_script_name;
    include fastcgi_params;
    }
  }

# systemctl restart nginx

测试反向代理至 php

[root@ydq05 ~]# ip addr|grep inet|grep global
  inet 192.168.1.244/24 brd 192.168.1.255 scope global eth0
  [root@ydq05 ~]# curl -I http://192.168.1.175:8090/index.php
  HTTP/1.1 200 OK
  Server: nginx/1.12.2
  Date: Tue, 31 Oct 2017 03:22:59 GMT
  Content-Type: text/html; charset=UTF-8
  Connection: keep-alive
  X-Powered-By: PHP/5.6.0

四、基于 upstream 配置反向代理至 tomcat

Nginx upstream 指令也可以将请求代理到后端服务器如下示例，结合 upstream 指令演示将其代理到 tomcat

# vim /etc/nginx/conf.d/tomcat.conf
upstream app {
                server localhost:8080;
                keepalive 32;
}

server {
    listen 80;
    server_name localhost;
    location / {
        proxy_set_header Host $host;
        proxy_set_header x-for $remote_addr;
        proxy_set_header x-server $host;
        proxy_set_header x-agent $http_user_agent;
        proxy_pass http://app;
    }
}

[root@node132 conf.d]# ss -nltp|grep java
LISTEN    0  1    ::ffff:127.0.0.1:8005  :::*      users:(("java",39559,45))
LISTEN    0  100                :::8009  :::*      users:(("java",39559,43))
LISTEN    0  100                :::8080  :::*      users:(("java",39559,42))

tomcat 版本
[root@node132 conf.d]# /usr/local/tomcat/bin/catalina.sh version
Using CATALINA_BASE:  /usr/local/tomcat
Using CATALINA_HOME:  /usr/local/tomcat
            ....
Server version: Apache Tomcat/7.0.69
Server built:  Apr 11 2016 07:57:09 UTC
Server number:  7.0.69.0
OS Name:        Linux
OS Version:    2.6.32-573.el6.x86_64
Architecture:  amd64
JVM Version:    1.7.0_79-b15
JVM Vendor:    Oracle Corporation

验证结果
# curl http://localhost

< !DOCTYPE html>




    ......

五、proxy 模块指令描述

proxy 模块的可用配置指令非常多，它们分别用于定义 proxy 模块工作时的诸多属性，如连接超时时长、代理时使用 http 协议版本等。下面对常用的指令做一个简单说明。

proxy_read_timeout 在连接断开之前两次从接收 upstream server 接收读操作的最大间隔时长；

如下面的一个示例：

proxy_redirect off;
    proxy_set_header Host $host;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    client_max_body_size 10m;
    client_body_buffer_size 128k;
    proxy_connect_timeout 30;
    proxy_send_timeout 15;
    proxy_read_timeout 15;
