Haproxy-1.5.x SSL配置

共计 4521 个字符，预计需要花费 12 分钟才能阅读完成。

一直使用 haproxy-1.4 版本代理, 不支持 ssl 配置，haproxy-1.5 版本支持，于是更新了版本进行测试。所使用的证书文件，使用原 apache ssl 证书文件进行简单处理可以在 haproyx 上使用。

本来想使用 haproxy-1.4 的穿透的，但是要后端服务器均要配置 ssl，于是配置在了 Haproyx-1.5 上，实现 ssl 终端 CA 认证。

1. 安装

# yum install pcre-devel openssl-devel -y

# tar zxvf haproxy-1.5.3.tar.gz

# cd haproxy-1.5.3

# make TARGET=linux26 USE_STATIC_PCRE=1 USE_REGPARM=1 USE_LINUX_TPROXY=1 USE_OPENSSL=1 USE_ZLIB=1 ARCH=x86_64

# make install PREFIX=/usr/local/haproxy

# cd /usr/local/haproxy

# mkdir conf

2. 准备 pem 证书文件

之前有配置过 apache ssl CA 认证配置文件，cer 文件与 key 文件，pem 文件就是将前面两个文件合并使用。

# cat my-server.cer my-server.key | tee my-server.pem

—–BEGIN CERTIFICATE—–
MIID3zCCA0igAwIBAgIPBwACIBQBFAAAAAACFUN1MA0GCSqGSIb3DQEBBQUAMIIB
JDENMAsGA1UEBh4EAEMATjEbMBkGA1UECB4SAEcAdQBhAG4AZwBkAG8AbgBnMRsw
GQYDVQQHHhIARwB1AGEAbgBnAHoAaABvAHUxPTA7BgNVBAoeNABHAEQAQwBBACAA
QwBlAHIAdABpAGYAaQBjAGEAdABlACAAQQB1AHQAaABvAHIAaQB0AHkxRzBFBgNV
BAsePgBHAHUAYQBuAGcAZABvAG4AZwAgAEMAZQByAHQAaQBmAGkAYwBhAHQAZQAg
AEEAdQB0AGgAbwByAGkAdAB5MVEwTwYDVQQDHkgARwBEAEMAQQAgAEcAdQBhAG4A
ZwBkAG8AbgBnACAAQwBlAHIAdABpAGYAaQBjAGEAdABlACAAQQB1AHQAaABvAHIA
aQB0AHkwHhcNMTQwMTEzMTYwMDAwWhcNMTkwMTMwMTYwMDAwWjCBrjENMAsGA1UE
Bh4EAEMATjEPMA0GA1UECB4GbXdTV3cBMQ8wDQYDVQQHHgZtd1PjXgIxKTAnBgNV
BAoeIG0LbWZ+z21OXwBT0VM6e6F0BlnUVFhPGk/hYG9OLV/DMSkwJwYDVQQLHiBt
C21mfs9tTl8AU9FTOm0LbWZZJ1OmADEANAAwADFbpDElMCMGA1UEAx4cADEAOQAy
AC4AMQA2ADgALgAyADMAMAAuADgANTCBnzANBgkqhkiG9w0BAQEFAAOBjQAwgYkC
gYEAz6XQgc/UBi/LtJh1BXTGxAyuWZY0nfkzPlv8cf2bRCMKadnM+iJ9PKv8mnpU
TgKe6+c5zjqy+sTk6KEYVMMROY4InrykZY/7tA+dk+lqECU+fQ+bNAzLh5yPp6Ni
2KzeG1V6/tF9t7syz8UWy6Bxgvdg3gu+M9vcpZUaD3NjsnECAwEAAaOBhTCBgjAf
BgNVHSMEGDAWgBR3QwkQ9xWLOrAR0kx7B5QE8BRURjAdBgNVHQ4EFgQUUN8BHs4A
rNrjCV9uSaeMw0/Fw/8wCwYDVR0PBAQDAgQwMBYGBSpWCwcBBA0xC4AJMjAxNDAx
MTQxMBsGBSpWFQEDBBIwMDcxMTIwMTQwMTE0Njg2NDkwDQYJKoZIhvcNAQEFBQAD
gYEAeKrIQ0u1cmgUz8qwW07VF1s6q+fKJf6OJnRDWshsG7ZRSJH2rZx7oohpZQJk
DUpLOGbvplXGFgyXCeQYyJSiStis0Ef6Jr1Y3iOjIrn7zASCu9EjuUSCreyF7w8c
4e4At2IMrUUTo+UZAiYRfqfMKpP7gYUY0LNmq2AEDbU4Fb0=
—–END CERTIFICATE—–
—–BEGIN RSA PRIVATE KEY—–
MIICXQIBAAKBgQDPpdCBz9QGL8u0mHUFdMbEDK5ZljSd+TM+W/xx/ZtEIwpp2cz6
In08q/yaelROAp7r5znOOrL6xOTooRhUwxE5jgievKRlj/u0D52T6WoQJT59D5s0
DMuHnI+no2LYrN4bVXr+0X23uzLPxRbLoHGC92DeC74z29yllRoPc2OycQIDAQAB
AoGBALIBDiZJ+BM5o+H0E9USj1X/HPM1fXOy7gfWKSm64wBdHY8yI7KGIGADe68d
kOmy+3N1K6urzESGx0jY2JfJBRiKR3QW+fEL5UBhj/PC5Nj9OMxwEK0WqYlfhivx
EpPycuwKhDN7aYcGJIK/J38j4Q8G383wDev1Sl9beLRoqs+FAkEA+LtkdOVU8hfa
Xx44Tl6PxsY25LWunjuoUu6KZOWLvsAJK+CGV91oZAJk+QwXIZj8tDjPAGrcvHMM
cENwrvFWuwJBANW3GKsHELMTzJumKUXlSPDlU5xGn7H2PQOc+FaYuinK6K94E55t
E7MN6Oe+1avOTLYlRVsv2klPUkK1DlrOxsMCQBEFmgFZ9G9A7KPXyJisZgB/biBG
wrV3dbR/OJ9hCig6siX7jpYSw+McOtbEWgzlkF2xCZGIvqRy5yYDp4GBaKMCQQDQ
0F+X7AVTE8tdYZL+KjOEvG1fSloKpg+jkiHLatqqrwl/ORHiP615y+N/W6Smg6HM
bso/eJgN/STg7MsjytnFAkAVwZMhaoIWIocbyoA3eUQVIrUDynDMq27TDFwltvaL
ihOkwBYuzDujgOBLwY+pLg6SqphDhgP92OCg+VVqty02
—–END RSA PRIVATE KEY—–

3. 创建配置文件

# vi /usr/local/haproxy/conf/haproxy.cfg

global

log 127.0.0.1 local0

maxconn 65535

chroot /usr/local/haproxy

uid 99

gid 99

stats socket /usr/local/haproxy/HaproxSocket level admin

daemon

nbproc 1

pidfile /usr/local/haproxy/haproxy.pid

#debug

tune.ssl.default-dh-param 2048

defaults

log 127.0.0.1 local3

mode http

option httplog

option httplog clf

option httpclose

option dontlognull

option forwardfor

option redispatch

retries 2

maxconn 2000

balance source

#balance roundrobin

stats uri /haproxy-stats

stats refresh 10s

timeout client 60s

timeout connect 9s

timeout server 30s

timeout check 5s

listen TEST_APP_Cluster

bind *:80

mode http

option httpchk GET /test.html HTTP/1.0\r\nHost:192.168.10.180

server node01 192.168.0.100:100 weight 3 check inter 2000 rise 2 fall 1

server node02 192.168.0.101:100 weight 3 backup check inter 2000 rise 2 fall 1

listen TEST_APP_SSL

bind *:443 ssl crt /usr/local/haproxy/conf/my-server.pem

reqadd X-Forwarded-Proto:\ https

mode http

option httpchk GET /test.html HTTP/1.0\r\nHost:192.168.10.180

server node01 192.168.0.100:100 weight 3 check inter 2000 rise 2 fall 1

server node02 192.168.0.101:100 weight 3 backup check inter 2000 rise 2 fall 1

listen stats_auth 0.0.0.0:91

stats enable

stats uri /admin

stats realm “HA_CONSOLE”

stats auth admin:123456

stats hide-version

stats refresh 10s

stats admin if TRUE

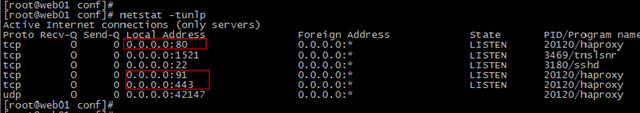

启动端口截图

4. 配置要点

由于证书采用 2048 长度配置，默认配置文件会报错，加上 tune.ssl.default-dh-param 2048 参数后，问题解决，采用 pem 格式的证书还可以通过 haproxy-1.4+stunnel 方式实现 ssl 功能。
