Redis 实例安装
安装说明：自动解压缩安装包，按照指定路径编译安装，复制配置文件模板到 Redis 实例路的数据径下，根据端口号修改配置文件模板
配置文件，当前 shell 脚本，安装包
参数 1：basedir,redis 安装包路径
参数 2：安装实例路径
参数 3：安装包名称
参数 4：安装实例的端口号
#!/bin/bash
set -e
if [$# -lt 4]; then
echo “$(basename $0): Missing script argument”
echo “$(installdir $0) [installfilename] [port] “
exit 9
fi
PotInUse=`netstat -anp | awk ‘{print $4}’ | grep $4 | wc -l`
if [$PotInUse -gt 0];then
echo “ERROR” $4 “Port is used by another process!”
exit 9
fi
basedir=$1
installdir=$2
installfilename=$3
port=$4
cd $basedir
tar -zxvf $installfilename.tar.gz >/dev/null 2>&1 &
cd $installfilename
mkdir -p $installdir
make PREFIX=$installdir install
sleep 1s
cp $basedir/redis.conf $installdir
sed -i “s/instance_port/$port/g” $installdir/redis.conf
sleep 1s
cd $installdir
./bin/redis-server redis.conf >/dev/null 2>&1 &
配置文件模板
################################## INCLUDES ###################################
# include /path/to/local.conf
# include /path/to/other.conf
################################## MODULES #####################################
# loadmodule /path/to/my_module.so
# loadmodule /path/to/other_module.so
################################## NETWORK #####################################
bind 127.0.0.1 & your ip
port instance_port
tcp-backlog 511
timeout 0
tcp-keepalive 300
################################# GENERAL #####################################
daemonize yes
supervised no
pidfile ./redis_instance_port.pid
loglevel notice
logfile ./redis_log.log
databases 16
always-show-logo yes
################################ SNAPSHOTTING ################################
save 900 1
save 300 10
save 60 10000
stop-writes-on-bgsave-error yes
rdbcompression yes
rdbchecksum yes
dbfilename dump.rdb
dir ./
################################# REPLICATION #################################
# masterauth <master-password>
replica-serve-stale-data yes
replica-read-only yes
repl-diskless-sync no
repl-diskless-sync-delay 5
repl-disable-tcp-nodelay no
replica-priority 100
################################## SECURITY ###################################
requirepass your_passwrod
################################### CLIENTS ####################################
# maxclients 10000
############################## MEMORY MANAGEMENT ################################
# maxmemory <bytes>
# maxmemory-policy noeviction
# maxmemory-samples 5
# replica-ignore-maxmemory yes
############################# LAZY FREEING ####################################
lazyfree-lazy-eviction no
lazyfree-lazy-expire no
lazyfree-lazy-server-del no
replica-lazy-flush no
############################## APPEND ONLY MODE ###############################
appendonly no
appendfilename “appendonly.aof”
# appendfsync always
appendfsync everysec
# appendfsync no
no-appendfsync-on-rewrite no
auto-aof-rewrite-percentage 100
auto-aof-rewrite-min-size 64mb
aof-load-truncated yes
aof-use-rdb-preamble yes
################################ LUA SCRIPTING ###############################
lua-time-limit 5000
################################ REDIS CLUSTER ###############################
cluster-enabled yes
# cluster-replica-validity-factor 10
# cluster-require-full-coverage yes
# cluster-replica-no-failover no
########################## CLUSTER DOCKER/NAT support ########################
################################## SLOW LOG ###################################
slowlog-log-slower-than 10000
slowlog-max-len 128
################################ LATENCY MONITOR ##############################
latency-monitor-threshold 0
############################# EVENT NOTIFICATION ##############################
notify-keyspace-events “”
############################### ADVANCED CONFIG ###############################
hash-max-ziplist-entries 512
hash-max-ziplist-value 64
list-max-ziplist-size -2
list-compress-depth 0
set-max-intset-entries 512
zset-max-ziplist-entries 128
zset-max-ziplist-value 64
hll-sparse-max-bytes 3000
stream-node-max-bytes 4096
stream-node-max-entries 100
activerehashing yes
client-output-buffer-limit normal 0 0 0
client-output-buffer-limit replica 256mb 64mb 60
client-output-buffer-limit pubsub 32mb 8mb 60
# client-query-buffer-limit 1gb
# proto-max-bulk-len 512mb
hz 10
dynamic-hz yes
aof-rewrite-incremental-fsync yes
rdb-save-incremental-fsync yes
########################### ACTIVE DEFRAGMENTATION #######################
# Enabled active defragmentation
# activedefrag yes
# Minimum amount of fragmentation waste to start active defrag
# active-defrag-ignore-bytes 100mb
# Minimum percentage of fragmentation to start active defrag
# active-defrag-threshold-lower 10
# Maximum percentage of fragmentation at which we use maximum effort
# active-defrag-threshold-upper 100
# Minimal effort for defrag in CPU percentage
# active-defrag-cycle-min 5
# Maximal effort for defrag in CPU percentage
# active-defrag-cycle-max 75
# Maximum number of set/hash/zset/list fields that will be processed from
# the main dictionary scan
# active-defrag-max-scan-fields 1000

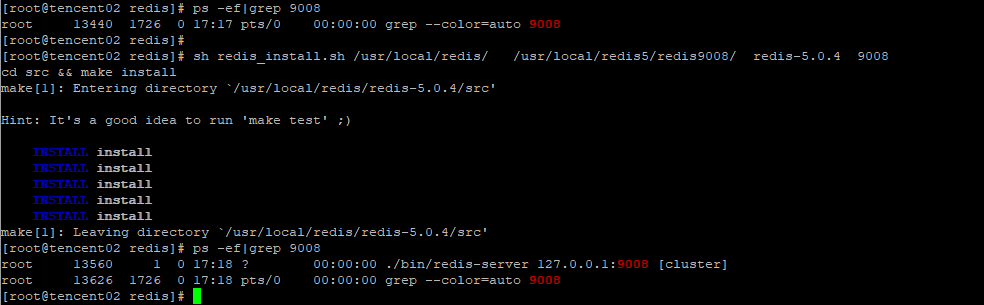

安装示例
sh redis_install.sh /usr/local/redis/ /usr/local/redis5/redis9008/ redis-5.0.4 9008

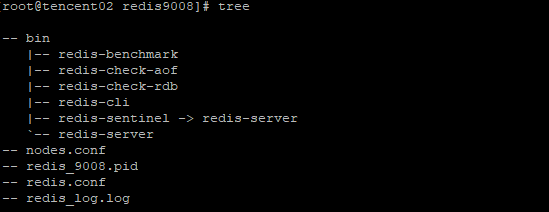

Redi 实例的目录结构
基于 Python 的 Redis 自动化集群实现
基于 Python 的自动化集群实现，初始化节点为 node_1~node_6，节点实例需要为集群模式，三主三从，自动化集群，分配 slots，加入从节点，3 秒钟左右完成
import redis
#master
node_1 = {‘host’: ‘127.0.0.1’, ‘port’: 9001, ‘password’: ‘***’}
node_2 = {‘host’: ‘127.0.0.1’, ‘port’: 9002, ‘password’: ‘***’}
node_3 = {‘host’: ‘127.0.0.1’, ‘port’: 9003, ‘password’: ‘***’}
#slave
node_4 = {‘host’: ‘127.0.0.1’, ‘port’: 9004, ‘password’: ‘***’}
node_5 = {‘host’: ‘127.0.0.1’, ‘port’: 9005, ‘password’: ‘***’}
node_6 = {‘host’: ‘127.0.0.1’, ‘port’: 9006, ‘password’: ‘***’}
redis_conn_1 = redis.StrictRedis(host=node_1[“host”], port=node_1[“port”], password=node_1[“password”])
redis_conn_2 = redis.StrictRedis(host=node_2[“host”], port=node_2[“port”], password=node_2[“password”])
redis_conn_3 = redis.StrictRedis(host=node_3[“host”], port=node_3[“port”], password=node_3[“password”])
# cluster meet
redis_conn_1.execute_command(“cluster meet {0} {1}”.format(node_2[“host”],node_2[“port”]))
redis_conn_1.execute_command(“cluster meet {0} {1}”.format(node_3[“host”],node_3[“port”]))
print(‘#################flush slots #################’)
redis_conn_1.execute_command(‘cluster flushslots’)
redis_conn_2.execute_command(‘cluster flushslots’)
redis_conn_3.execute_command(‘cluster flushslots’)
print(‘#################add slots#################’)
for i in range(0,16383+1):
if i <= 5461:
try:
redis_conn_1.execute_command(‘cluster addslots {0}’.format(i))
except:
print(‘cluster addslots {0}’.format(i) +’ error’)
elif 5461 < i and i <= 10922:
try:
redis_conn_2.execute_command(‘cluster addslots {0}’.format(i))
except:
print(‘cluster addslots {0}’.format(i) + ‘ error’)
elif 10922 < i:
try:
redis_conn_3.execute_command(‘cluster addslots {0}’.format(i))
except:
print(‘cluster addslots {0}’.format(i) + ‘ error’)
print()
print(‘#################cluster status#################’)
print()
print(‘##################’+str(node_1[“host”])+’:’+str(node_1[“port”])+’##################’)
print(str(redis_conn_1.execute_command(‘cluster info’), encoding = “utf-8”).split(“\n”)[0])
print(‘##################’+str(node_2[“host”])+’:’+str(node_2[“port”])+’##################’)
print(str(redis_conn_1.execute_command(‘cluster info’), encoding = “utf-8”).split(“\n”)[0])
print(‘##################’+str(node_3[“host”])+’:’+str(node_3[“port”])+’##################’)
print(str(redis_conn_1.execute_command(‘cluster info’), encoding = “utf-8”).split(“\n”)[0])
#slave cluster meet
redis_conn_1.execute_command(“cluster meet {0} {1}”.format(node_4[“host”],node_4[“port”]))
redis_conn_2.execute_command(“cluster meet {0} {1}”.format(node_5[“host”],node_5[“port”]))
redis_conn_3.execute_command(“cluster meet {0} {1}”.format(node_6[“host”],node_6[“port”]))
#cluster nodes
print(str(redis_conn_1.execute_command(‘cluster nodes’), encoding = “utf-8”))
示例
这样一个 Redis 的集群，从实例的安装到集群的安装，环境依赖本身没有问题的话，基本上 1 分钟之内可以完成这个搭建过程。
：
