背景知识：
Keepalived：Keepalived 的作用是检测 web 服务器的状态，如果有一台 web 服务器死机，或工作出现故障，Keepalived 将检测到，并将有故障的 web 服务器从系统中剔除，当 web 服务器工作正常后 Keepalived 自动将 web 服务器加入到服务器群中，这些工作全部自动完成，不需要人工干涉，需要人工做的只是修复故障的 web 服务器。
LVS：LVS 是 Linux Virtual Server 的简写，意即 Linux 虚拟服务器，是一个虚拟的服务器集群系统。
实验系统：CentOS 6.6_x86_64
实验前提：提前准备好编译环境，防火墙和 selinux 都关闭
实验说明：本实验共有 4 台主机，其中 keep1 和 keep2 为 2 台前端的 keepalived 服务器，real1 和 real2 为 LVS 中的 realserver，IP 地址对应如拓扑图。
实验软件：httpd-2.2.15 keepalived-1.2.19

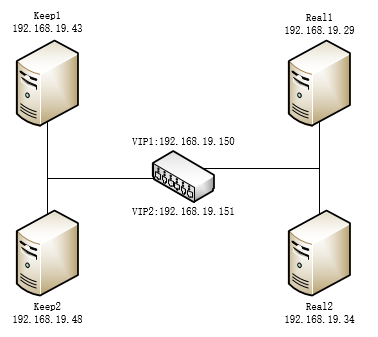

实验拓扑：
一、配置 realserver
1. 安装 httpd：
yum -y install httpd
2. 配置内核参数：
echo 1 > /proc/sys/net/ipv4/conf/lo/arp_ignore // 仅在请求的地址配置在请求报文的接口进行响应
echo 1 > /proc/sys/net/ipv4/conf/all/arp_ignore
echo 2 > /proc/sys/net/ipv4/conf/lo/arp_announce // 表示仅通告网络直连的接口的地址
echo 2 > /proc/sys/net/ipv4/conf/all/arp_announce

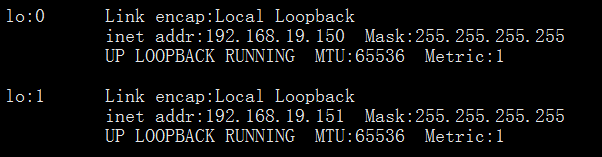

3. 增加测试页面并配置 VIP：
real1 上：
ifconfig lo:0 192.168.19.150 netmask 255.255.255.255 broadcast 192.168.19.150 up // 配置 VIP
ifconfig lo:1 192.168.19.151 netmask 255.255.255.255 broadcast 192.168.19.151 up
route add -host 192.168.19.150 dev lo:0 // 配置路由
route add -host 192.168.19.151 dev lo:1
vim /var/www/html/index.html
———————————————
<h1>realserver1</h1>
———————————————
service httpd start
real2 上 ：
ifconfig lo:0 192.168.19.150 netmask 255.255.255.255 broadcast 192.168.19.150 up
ifconfig lo:1 192.168.19.151 netmask 255.255.255.255 broadcast 192.168.19.151 up
route add -host 192.168.19.150 dev lo:0
route add -host 192.168.19.151 dev lo:1
vim /var/www/html/index.html
———————————————
<h1>realserver2</h1>
———————————————
service httpd start
二、安装并配置 keepalived
1. 编译安装 keepalived，在 keep1 和 keep2 上操作：
wget http://www.keepalived.org/software/keepalived-1.2.19.tar.gz
tar xf keepalived-1.2.19.tar.gz
cd keepalived-1.2.19
./configure –prefix=/usr/local/keepalived
make && make install
cp -p /usr/local/keepalived/etc/rc.d/init.d/keepalived /etc/init.d/
chkconfig –add keepalived
chkconfig keepalived on
ln -sv /usr/local/keepalived/etc/sysconfig/keepalived /etc/sysconfig/keepalived
cp -p /usr/local/keepalived/sbin/keepalived /usr/sbin/keepalived
ln -sv /usr/local/keepalived/etc/keepalived/ /etc/keepalived
yum -y install ipvsadm // 安装 LVS 工具
复制代码
2. 配置 keepalived：
keep1 上：
vim /etc/keepalived/keepalived.conf
—————————————————-
vrrp_instance VI_1 {
state MASTER
interface eth0
virtual_router_id 31
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass abcd
}
virtual_ipaddress {
192.168.19.150
}
}
vrrp_instance VI_2 {
state BACKUP
interface eth0
virtual_router_id 41
priority 99
advert_int 1
authentication {
auth_type PASS
auth_pass abcd
}
virtual_ipaddress {
192.168.19.151
}
}
virtual_server 192.168.19.150 80 {
delay_loop 6
lb_algo rr //LVS 算法
lb_kind DR // 调度类型
protocol TCP
real_server 192.168.19.29 {
weight 1
connect_timeout 3
nb_get_retry 3
delay_before_retry 3
}
real_server 192.168.19.34 {
weight 1
connect_timeout 3
nb_get_retry 3
delay_before_retry 3
}
}
virtual_server 192.168.19.151 80 {
delay_loop 6
lb_algo rr
lb_kind DR
protocol TCP
real_server 192.168.19.29 {
weight 1
connect_timeout 3
nb_get_retry 3
delay_before_retry 3
}
real_server 192.168.19.34 {
weight 1
connect_timeout 3
nb_get_retry 3
delay_before_retry 3
}
}
keep2 上：
vim /etc/keepalived/keepalived.conf
———————————————-
vrrp_instance VI_1 {
state BACKUP
interface eth0
virtual_router_id 31
priority 99
advert_int 1
authentication {
auth_type PASS
auth_pass abcd
}
virtual_ipaddress {
192.168.19.150
}
}
vrrp_instance VI_2 {
state MASTER
interface eth0
virtual_router_id 41
priority 100
advert_int 1
authentication {
auth_type PASS
auth_pass abcd
}
virtual_ipaddress {
192.168.19.151
}
}
virtual_server 192.168.19.150 80 {
delay_loop 6
lb_algo rr
lb_kind DR
protocol TCP
real_server 192.168.19.29 {
weight 1
connect_timeout 3
nb_get_retry 3
delay_before_retry 3
}
real_server 192.168.19.34 {
weight 1
connect_timeout 3
nb_get_retry 3
delay_before_retry 3
}
}
virtual_server 192.168.19.151 80 {
delay_loop 6
lb_algo rr
lb_kind DR
protocol TCP
real_server 192.168.19.29 {
weight 1
connect_timeout 3
nb_get_retry 3
delay_before_retry 3
}
real_server 192.168.19.34 {
weight 1
connect_timeout 3
nb_get_retry 3
delay_before_retry 3
}
}
3. 两台机器启动 keepalived：
service keepalived start
ipvsadm -L -n // 用 LVS 工具查看 keepalived 运行
ip addr show // 查看 VIP

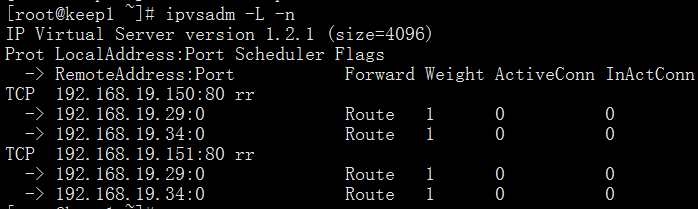

两台机器上 LVS 规则都已经生效，且 2 个 VIP 分别运行在 2 个节点：

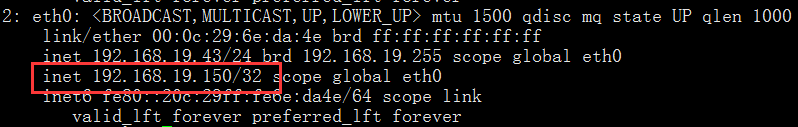

keep1 上：

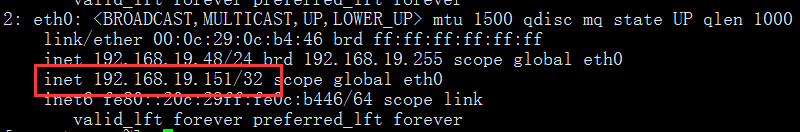

keep2 上：
分别打开测试页面进行测试：

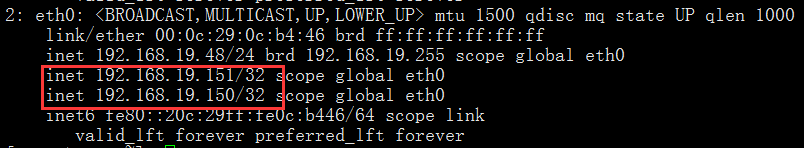

停掉任何一个节点，资源都会自动转移：
至此，演示完毕，谢谢！
