MariaDB Proxy读写分离的实现

156次阅读
没有评论

共计 9805 个字符,预计需要花费 25 分钟才能阅读完成。

MariaDB Proxy 读写分离的实现

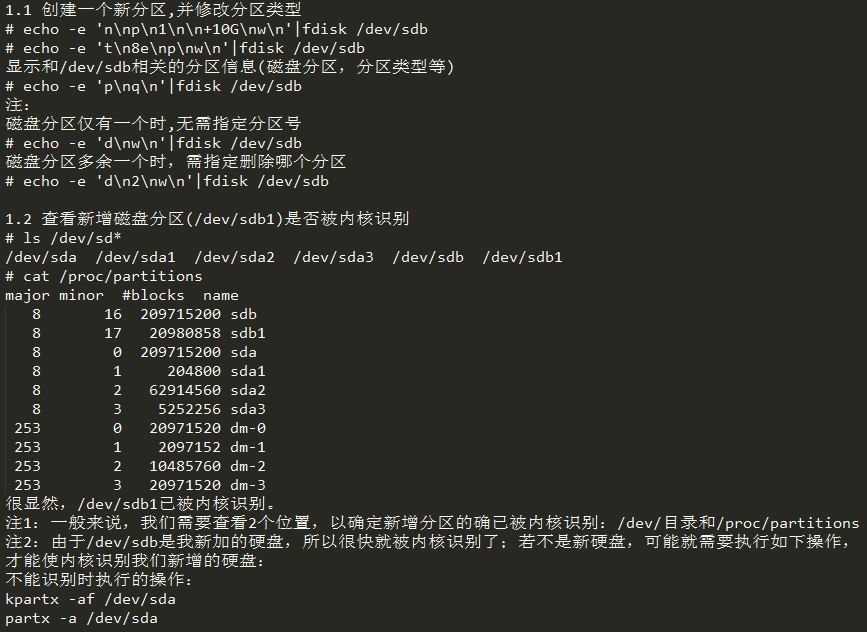

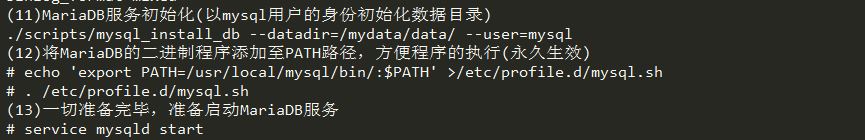

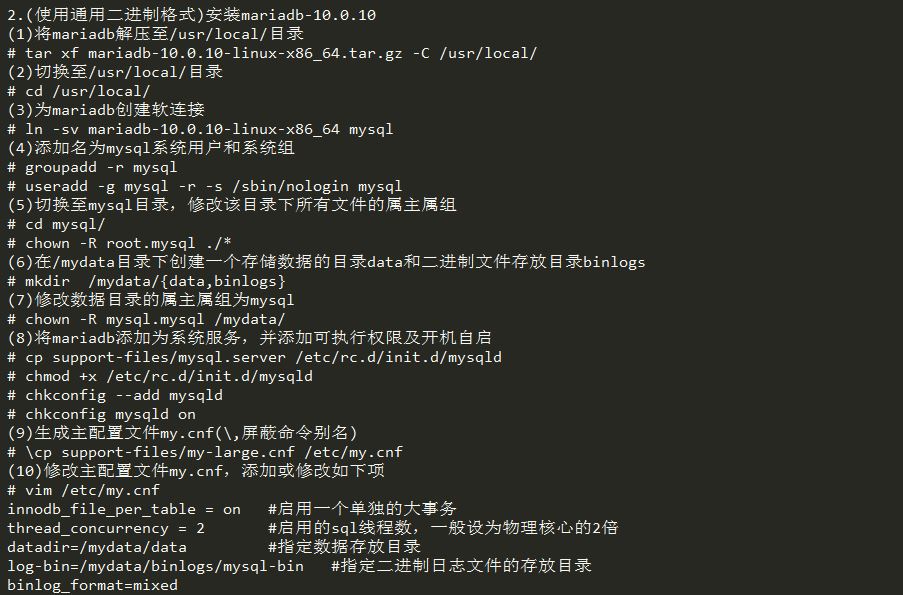

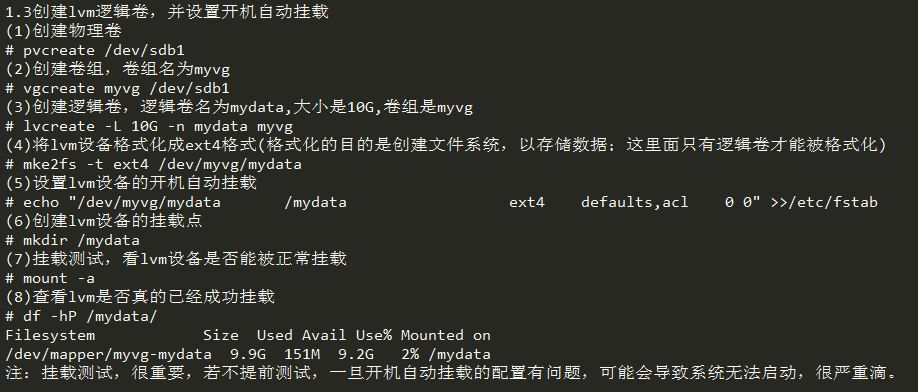

1. 创建用于存储数据目录 lvm 设备

MariaDB Proxy 读写分离的实现

MariaDB Proxy 读写分离的实现

MariaDB Proxy 读写分离的实现

MariaDB Proxy 读写分离的实现

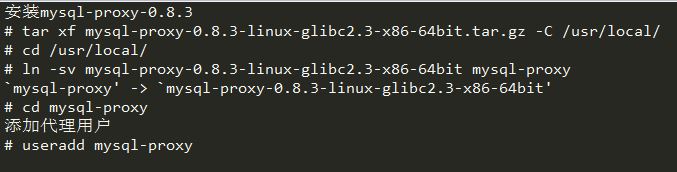

安装 mysql-proxy-0.8.3



MariaDB Proxy 读写分离的实现

MariaDB 的详细介绍:请点这里
MariaDB 的下载地址:请点这里

————————————– 分割线 ————————————–

推荐阅读:

在 CentOS/RHEL/Scientific Linux 6 下安装 LAMP (Apache with MariaDB and PHP) http://www.linuxidc.com/Linux/2013-07/86755.htm

Haproxy+Keepalived 搭建 Weblogic 高可用负载均衡集群 http://www.linuxidc.com/Linux/2013-09/89732.htm

Keepalived+HAProxy 配置高可用负载均衡 http://www.linuxidc.com/Linux/2012-03/56748.htm

CentOS 6.3 下 Haproxy+Keepalived+Apache 配置笔记 http://www.linuxidc.com/Linux/2013-06/85598.htm

Haproxy + KeepAlived 实现 WEB 群集 on CentOS 6 http://www.linuxidc.com/Linux/2012-03/55672.htm

Haproxy+Keepalived 构建高可用负载均衡 http://www.linuxidc.com/Linux/2012-03/55880.htm

————————————– 分割线 ————————————–

为 mysql-proxy 提供 SysV 服务脚本,内容如下所示
# vim /etc/rc.d/init.d/mysql-proxy

#!/bin/bash

#

# mysql-proxy Thisscript starts and stops the mysql-proxy daemon

#

# chkconfig: – 7830

# processname:mysql-proxy

# description:mysql-proxy is a proxy daemon for mysql



# Source functionlibrary.

./etc/rc.d/init.d/functions



prog=”/usr/local/mysql-proxy/bin/mysql-proxy”



# Sourcenetworking configuration.

if [-f/etc/sysconfig/network]; then

. /etc/sysconfig/network

fi



# Check thatnetworking is up.

[${NETWORKING} = “no”] && exit 0



# Set defaultmysql-proxy configuration.

ADMIN_USER=”admin”

ADMIN_PASSWD=”admin”

ADMIN_LUA_SCRIPT=”/usr/local/mysql-proxy/share/doc/mysql-proxy/admin.lua”

PROXY_OPTIONS=”–daemon”

PROXY_PID=/var/run/mysql-proxy.pid

PROXY_USER=”mysql-proxy”



# Sourcemysql-proxy configuration.

if [-f/etc/sysconfig/mysql-proxy]; then

. /etc/sysconfig/mysql-proxy

fi



RETVAL=0



start() {

echo -n $”Starting $prog: “

daemon $prog $PROXY_OPTIONS–pid-file=$PROXY_PID –proxy-address=”$PROXY_ADDRESS”–user=$PROXY_USER –admin-username=”$ADMIN_USER”–admin-lua-script=”$ADMIN_LUA_SCRIPT”–admin-password=”$ADMIN_PASSWORD”

RETVAL=$?

echo

if [$RETVAL -eq 0]; then

touch /var/lock/subsys/mysql-proxy

fi

}



stop() {

echo -n $”Stopping $prog: “

killproc -p $PROXY_PID -d 3 $prog

RETVAL=$?

echo

if [$RETVAL -eq 0]; then

rm -f /var/lock/subsys/mysql-proxy

rm -f $PROXY_PID

fi

}

# See how we werecalled.

case”$1″ in

start)

start

;;

stop)

stop

;;

restart)

stop

start

;;

condrestart|try-restart)

if status -p $PROXY_PIDFILE $prog>&/dev/null; then

stop

start

fi

;;

status)

status -p $PROXY_PID $prog

;;

*)

echo “Usage: $0{start|stop|restart|reload|status|condrestart|try-restart}”

RETVAL=1

;;

esac



exit$RETVAL



将上述内容保存为 /etc/rc.d/init.d/mysql-proxy,给予执行权限,而后加入到服务列表。

# chmod +x /etc/rc.d/init.d/mysql-proxy

# chkconfig –add mysql-proxy



更多详情见请继续阅读下一页的精彩内容:http://www.linuxidc.com/Linux/2014-05/101306p2.htm

为服务脚本提供配置文件 /etc/sysconfig/mysql-proxy,内容如下所示:

# Options formysql-proxy

ADMIN_USER=”admin”

ADMIN_PASSWORD=”admin”

ADMIN_ADDRESS=””

ADMIN_LUA_SCRIPT=”/usr/local/mysql-proxy/share/doc/mysql-proxy/admin.lua”

PROXY_ADDRESS=””

PROXY_USER=”mysql-proxy”

PROXY_OPTIONS=”–daemon–log-level=info –log-use-syslog”



其中最后一行,需要按实际场景进行修改,例如:

PROXY_OPTIONS=”–daemon–log-level=info –log-use-syslog –plugins=proxy –plugins=admin–proxy-backend-addresses=172.16.251.68:3306–proxy-read-only-backend-addresses=172.16.251.69:3306–proxy-lua-script=/usr/local/mysql-proxy/share/doc/mysql-proxy/rw-splitting.lua”

其中的 proxy-backend-addresses 选项和 proxy-read-only-backend-addresses 选项均可重复使用多次,以实现指定多个读写服务器或只读服务器。







复制如下内容建立 admin.lua 文件,将其保存至 /usr/local/mysql-proxy/share/doc/mysql-proxy/ 目录中。

–[[$%BEGINLICENSE%$

Copyright (c) 2007, 2012, Oracle and/or itsaffiliates. All rights reserved.



This program is free software; you canredistribute it and/or

modify it under the terms of the GNU GeneralPublic License as

published by the Free Software Foundation;version 2 of the

License.



This program is distributed in the hope thatit will be useful,

but WITHOUT ANY WARRANTY; without even theimplied warranty of

MERCHANTABILITY or FITNESS FOR A PARTICULARPURPOSE. See the

GNU General Public License for more details.



You should have received a copy of the GNUGeneral Public License

along with this program; if not, write to theFree Software

Foundation, Inc., 51 Franklin St, Fifth Floor,Boston, MA

02110-1301USA



$%ENDLICENSE%$ –]]



functionset_error(errmsg)

proxy.response = {

type = proxy.MYSQLD_PACKET_ERR,

errmsg = errmsg or “error”

}

end



functionread_query(packet)

if packet:byte() ~= proxy.COM_QUERY then

set_error(“[admin] we only handletext-based queries (COM_QUERY)”)

return proxy.PROXY_SEND_RESULT

end



local query = packet:sub(2)



local rows = {}

local fields = {}



if query:lower() == “select * frombackends” then

fields = {

{name = “backend_ndx”,

type = proxy.MYSQL_TYPE_LONG },



{name = “address”,

type = proxy.MYSQL_TYPE_STRING },

{name = “state”,

type = proxy.MYSQL_TYPE_STRING },

{name = “type”,

type = proxy.MYSQL_TYPE_STRING },

{name = “uuid”,

type = proxy.MYSQL_TYPE_STRING },

{name =”connected_clients”,

type = proxy.MYSQL_TYPE_LONG },

}



for i = 1, #proxy.global.backends do

local states = {

“unknown”,

“up”,

“down”

}

local types = {

“unknown”,

“rw”,

“ro”

}

local b = proxy.global.backends[i]



rows[#rows + 1] = {

i,

b.dst.name,– configured backend address

states[b.state + 1], — the C-idis pushed down starting at 0

types[b.type + 1],– the C-id is pushed down starting at 0

b.uuid,– the MySQL Server’s UUID if itis managed

b.connected_clients– currently connected clients

}

end

elseif query:lower() == “select * fromhelp” then

fields = {

{name = “command”,

type =proxy.MYSQL_TYPE_STRING },

{name = “description”,

type = proxy.MYSQL_TYPE_STRING },

}

rows[#rows + 1] = {“SELECT * FROMhelp”, “shows this help”}

rows[#rows + 1] = {“SELECT * FROMbackends”, “lists the backends and their state”}

else

set_error(“use ‘SELECT * FROM help’to see the supported commands”)

return proxy.PROXY_SEND_RESULT

end



proxy.response = {

type = proxy.MYSQLD_PACKET_OK,

resultset = {

fields = fields,

rows = rows

}

}

return proxy.PROXY_SEND_RESULT

end



仅启动 mysql-proxy 就可以了,不要启动 MariaDB, 否则你只会看到 mysql 的 3306 端口

# service mysql-proxy start

# ss –tnl|egrep “:3306|:4401”

LISTEN 0 128 *:4041 *:* users:((“mysql-proxy”,3592,11))

LISTEN 0 128 *:3306 *:* users:((“mysql-proxy”,3592,10))

MariaDB Proxy 读写分离的实现

1. 创建用于存储数据目录 lvm 设备

MariaDB Proxy 读写分离的实现

MariaDB Proxy 读写分离的实现

MariaDB Proxy 读写分离的实现

MariaDB Proxy 读写分离的实现



安装 mysql-proxy-0.8.3



MariaDB Proxy 读写分离的实现

MariaDB 的详细介绍:请点这里
MariaDB 的下载地址:请点这里

————————————– 分割线 ————————————–

推荐阅读:

在 CentOS/RHEL/Scientific Linux 6 下安装 LAMP (Apache with MariaDB and PHP) http://www.linuxidc.com/Linux/2013-07/86755.htm

Haproxy+Keepalived 搭建 Weblogic 高可用负载均衡集群 http://www.linuxidc.com/Linux/2013-09/89732.htm

Keepalived+HAProxy 配置高可用负载均衡 http://www.linuxidc.com/Linux/2012-03/56748.htm

CentOS 6.3 下 Haproxy+Keepalived+Apache 配置笔记 http://www.linuxidc.com/Linux/2013-06/85598.htm

Haproxy + KeepAlived 实现 WEB 群集 on CentOS 6 http://www.linuxidc.com/Linux/2012-03/55672.htm

Haproxy+Keepalived 构建高可用负载均衡 http://www.linuxidc.com/Linux/2012-03/55880.htm

————————————– 分割线 ————————————–

为 mysql-proxy 提供 SysV 服务脚本,内容如下所示
# vim /etc/rc.d/init.d/mysql-proxy

#!/bin/bash

#

# mysql-proxy Thisscript starts and stops the mysql-proxy daemon

#

# chkconfig: – 7830

# processname:mysql-proxy

# description:mysql-proxy is a proxy daemon for mysql



# Source functionlibrary.

./etc/rc.d/init.d/functions



prog=”/usr/local/mysql-proxy/bin/mysql-proxy”



# Sourcenetworking configuration.

if [-f/etc/sysconfig/network]; then

. /etc/sysconfig/network

fi



# Check thatnetworking is up.

[${NETWORKING} = “no”] && exit 0



# Set defaultmysql-proxy configuration.

ADMIN_USER=”admin”

ADMIN_PASSWD=”admin”

ADMIN_LUA_SCRIPT=”/usr/local/mysql-proxy/share/doc/mysql-proxy/admin.lua”

PROXY_OPTIONS=”–daemon”

PROXY_PID=/var/run/mysql-proxy.pid

PROXY_USER=”mysql-proxy”



# Sourcemysql-proxy configuration.

if [-f/etc/sysconfig/mysql-proxy]; then

. /etc/sysconfig/mysql-proxy

fi



RETVAL=0



start() {

echo -n $”Starting $prog: “

daemon $prog $PROXY_OPTIONS–pid-file=$PROXY_PID –proxy-address=”$PROXY_ADDRESS”–user=$PROXY_USER –admin-username=”$ADMIN_USER”–admin-lua-script=”$ADMIN_LUA_SCRIPT”–admin-password=”$ADMIN_PASSWORD”

RETVAL=$?

echo

if [$RETVAL -eq 0]; then

touch /var/lock/subsys/mysql-proxy

fi

}



stop() {

echo -n $”Stopping $prog: “

killproc -p $PROXY_PID -d 3 $prog

RETVAL=$?

echo

if [$RETVAL -eq 0]; then

rm -f /var/lock/subsys/mysql-proxy

rm -f $PROXY_PID

fi

}

# See how we werecalled.

case”$1″ in

start)

start

;;

stop)

stop

;;

restart)

stop

start

;;

condrestart|try-restart)

if status -p $PROXY_PIDFILE $prog>&/dev/null; then

stop

start

fi

;;

status)

status -p $PROXY_PID $prog

;;

*)

echo “Usage: $0{start|stop|restart|reload|status|condrestart|try-restart}”

RETVAL=1

;;

esac



exit$RETVAL



将上述内容保存为 /etc/rc.d/init.d/mysql-proxy,给予执行权限,而后加入到服务列表。

# chmod +x /etc/rc.d/init.d/mysql-proxy

# chkconfig –add mysql-proxy



更多详情见请继续阅读下一页的精彩内容:http://www.linuxidc.com/Linux/2014-05/101306p2.htm

MySQL Master

在 MySQL Master 端 (172.16.251.69) 授权

#mysql

mysql> GRANT ALL ON*.* TO ‘admin’@’172.16.%.%’ IDENTIFIED BY ‘admin’;

mysql> FLUSHPRIVILEGES;





MySQL Slave

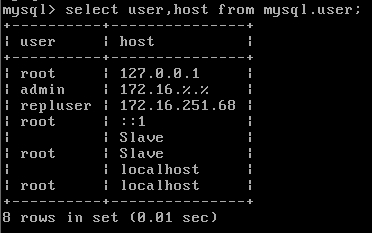

MySQL Slave 端的数据库上查看是否有授权的用户

MariaDB Proxy 读写分离的实现



测试

下面的操作均在 Maridb Proxy(172.16.251.70)上执行

管理功能测试

此时,若我们还试图以传统的方式连接 Mysql 的话,很显然是会失败的,如下:

# mysql

ERROR 2002(HY000): Can’t connect to local MySQL server through socket ‘/tmp/mysql.sock'(2 “No such file or directory”)



正确的方式:

[root@station150 ~]#mysql-uadmin -padmin -h172.16.251.70 –port=4041

Welcome to theMariaDB monitor.Commands end with ; or\g.

Your MySQLconnection id is 1

Server version:5.0.99-agent-admin

MySQL [(none)]> SELECT* FROM HELP;

MySQL [(none)]>SELECT * FROM backends;

+————-+——————–+———+——+——+——————-+

| backend_ndx |address| state| type | uuid | connected_clients |

+————-+——————–+———+——+——+——————-+

|1 | 172.16.251.69:3306 | unknown |rw| NULL |0 |

|2 | 172.16.251.68:3306 | unknown |ro| NULL |0 |

+————-+——————–+———+——+——+——————-+

2 rows in set (0.01sec)



读写分离测试

通过 MariadbProxy(172.16.251.70)访问 Master MySQL(172.16.251.69)的数据库

# mysql -uadmin-padmin -h172.16.251.70 [–port=3306]

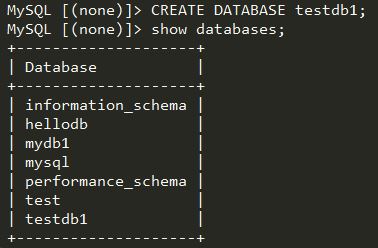

(1)测试写操作

# mysql -uadmin -padmin-h172.16.251.70

MariaDB Proxy 读写分离的实现

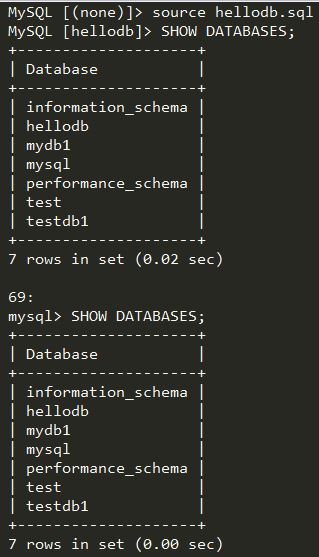

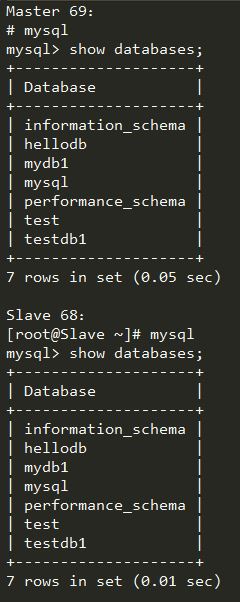

然后分别去 Master 端和 Slave 端,验证是否能看通过 Mariadb Proxy 新建的 mydb1 数据库

MariaDB Proxy 读写分离的实现

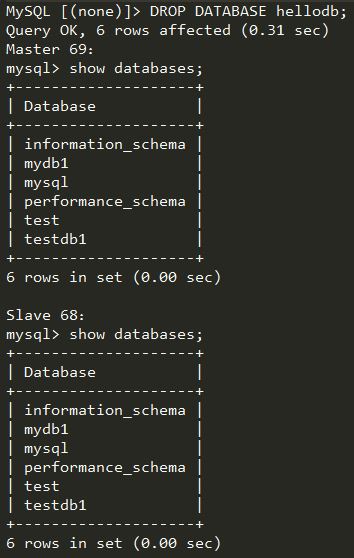

通过 Mariadb Proxy 删除 hellodb 数据库及其中的数据,并验证

MariaDB Proxy 读写分离的实现



MariaDB Proxy 70
执行批量导入数据的操作:

MariaDB Proxy 读写分离的实现

MariaDB Proxy 读写分离的实现

验证读写分离的最好办法是:分别在 Master(可读写),Slave(只读)上使用 tcpdump 抓包工具,看可以捕捉到哪种操作的数据报文



测试读操作

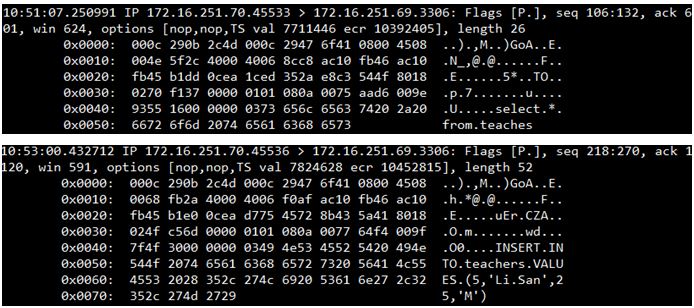

在 Master 上捕获到的和读写操作相关的报文

MariaDB Proxy 读写分离的实现

由于在 Master 上可以进行读写操作,所以当读 (查询) 操作较少的时候,基本上 Master 自身就处理了,

所以想要验证效果就必须批量导入数据或执行查询操作。



在 MariadbProxy(70)执行批量读操作

# for i in `seq10`;do mysql -uadmin -padmin -h172.16.251.70 -e “select * fromhellodb.classes where ClassID=$i”;done

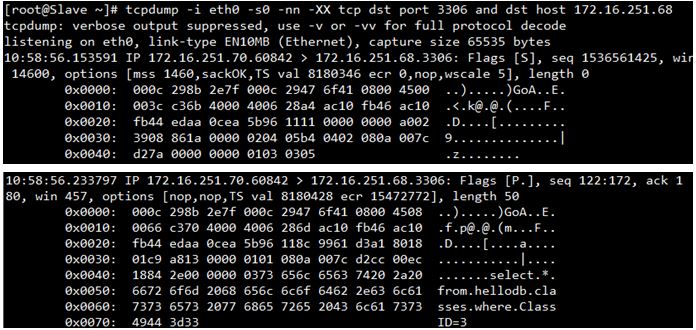

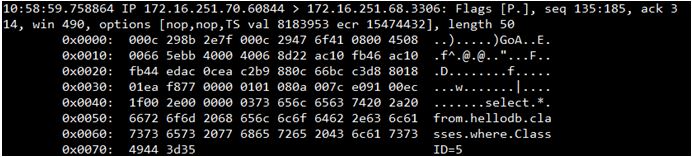

下面是批量执行读操作时,在 Slave 上捕获到的和读写操作相关的报文



MariaDB Proxy 读写分离的实现

MariaDB Proxy 读写分离的实现

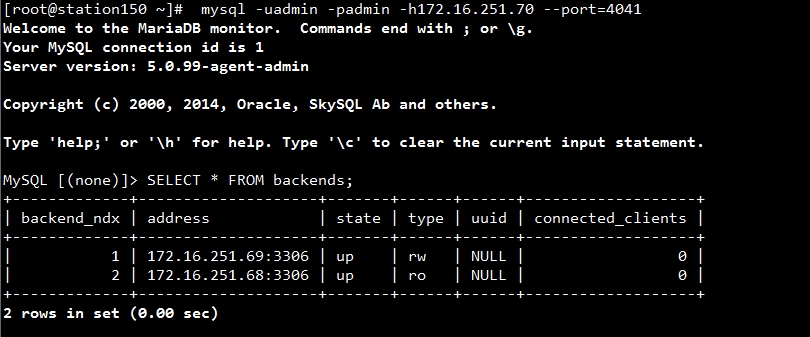

朋友,还记得之前在 MariaDBProxy 上执行 SELECT * FROM backends; 时 state 栏的状态信息吗?

刚开执行读写操作的时候,只有 Master(172.16.251.69)的 state 是 up 状态,而在我批量执行读操作之后,

现在 Slave(172.16.251.68)的 state 也变成了 up 状态,表示 Slave 端已接受到了读请求

MariaDB Proxy 读写分离的实现
