开源IT管理系统 Hyperic HQ 部署测试（监控篇）

428次阅读

共计 4719 个字符，预计需要花费 12 分钟才能阅读完成。

最近接手服务器系统监控项目，开源软件 hyperic-hq，安装了测试环境熟悉下。Hyperic HQ 是一个开源的 IT 管理框架，让用户使用统一的界面来管理各种不同的 IT 技术。
下载地址：
http://sourceforge.net/projects/hyperic-hq/files/
http://www.hyperic.com/

我使用的是 4.6 版本，官方已经更新到 5.0 版本
下载安装包要注意，有 32,64 位选择，由于我的系统是 64bit，下面的测试软件都将使用 64bit。大家可以根据自己环境安装。

一、Server 端安装：
hyperic-hq-installer-4.6-x86-64-linux.tar.gz
安装步骤
1 新建 hyperic 用户
#useradd hyperic
2 解压下载文件移动到 /var/lib/hyperic
#tar -zxvf hyperic-hq-installer-4.6-x86-64-linux.tar.gz
#mv hyperic-hq-installer-4.6 /var/lib/
3 切换 hyperic 用户
#su – hyperic
$
4 执行
#/var/lib/hyperic-hq-installer-4.6/setup.sh -postgresql
按步骤提示安装
hyperic-hq 可以支持报考 MySQL、Oracle、postgresql 等数据库，详细可以查看官方文档。我就简单说明下：

默认安装：/var/lib/hyperic-hq-installer-4.6/setup.sh 那么将使用 hyperic-hq 自带 postgresql 数据库
支持其他数据库安装：/var/lib/hyperic-hq-installer-4.6/setup.sh -full 在交互中选择自己想要的数据库
支持 postgresql 数据库安装：/var/lib/hyperic-hq-installer-4.6/setup.sh -postgresql
这里我选择支持 postgresql 数据库安装：

# su – hyperic
-bash-3.2$ /var/lib/hyperic-hq-installer-4.6/setup.sh -postgresql
Unpacking JRE to temporary directory /tmp/jre
Please ignore references to missing tools.jar
Unable to locate tools.jar. Expected to find it in /tmp/lib/tools.jar
Loading taskdefs…
Taskdefs loaded
Initializing Hyperic HQ 4.6 Installation…
Choose which software to install:
1: Hyperic HQ Server
2: Hyperic HQ Agent
You may enter multiple choices, separated by commas.
1
HQ server installation path [default ‘/home/hyperic’]:
Enter the fully qualified domain name of the SMTP server that HQ will use to send email messages [default ‘192.168.138.1’]:

Enter the email address that HQ will use as the sender for email messages [default ‘hqadmin@168.138.1’]:

Enter an encryption key to use to encrypt the database password.:
www.igg.com
What should the username be for the initial admin user? [default ‘hqadmin’]:

What should the password be for the initial admin user?:
(again):
What should the email address be for the initial admin user? [default ‘hqadmin@168.138.1’]:

Loading install configuration…
Install configuration loaded.
Preparing to install…
Validating server install configuration…
Checking server webapp port…
Checking server secure webapp port…
Verifying admin user properties
Validating server DB configuration…
Installing the server…
Unpacking server to: /home/hyperic…
Creating server configuration files…
Copying binaries and libraries to server installation…
Copying server configuration file…
Copying server db-upgrade files…
Copying server libs…
Setting up server database…
Setting up JDBC driver…
Copying database files…
Configuring database…
Loading taskdefs…
Taskdefs loaded
Starting repopulation of configuration table…
Starting built-in database…
Waiting for built-in database to start (on port 9432)…
Preparing database…
Loading taskdefs…
Taskdefs loaded
Loading taskdefs…
Taskdefs loaded
Loading taskdefs…
Taskdefs loaded
Waiting for server to stop…
Stopping built-in database…
Built-in database stopped.
Installing the server JRE …
Unpacking JRE amd64-linux-1.6.tar.gz to: /home/hyperic/server-4.6…
Setting permissions on /home/hyperic/server-4.6…
Setting permissions on server binaries…
Fixing line endings on text files…
——————————————————————————–
Installation Complete:
Server successfully installed to: /home/hyperic/server-4.6
——————————————————————————–

You can now start your HQ server by running this command:

/home/hyperic/server-4.6/bin/hq-server.sh start

Note that the first time the HQ server starts up it may take several minutes
to initialize. Subsequent startups will be much faster.

Once the HQ server reports that it has successfully started, you can log in
to your HQ server at:

http://192.168.138.1:7080/

username: hqadmin
password: hqadmin

To change your password, log in to the HQ server, click the “Administration”
link, choose “List Users”, then click on the “hqadmin” user.

Setup completed.
A copy of the output shown above has been saved to:
/var/lib/hyperic-hq-installer-4.6/installer/logs/hq-install.log

Deleting temporary JRE
报错执行：
You must run this script as root:
/var/lib/hyperic-hq-installer-4.6/installer/data/hqdb/tune-os.sh
5 安装完毕之后，切换 root 用户启动命令
$exit
#chmod +x /home/hyperic/server-4.6/bin/hq-server.sh
#/bin/su – hyperic -c ‘/home/hyperic/server-4.6/bin/hq-server.sh start’
Starting HQ Server…
6 相应端口对外限制 7443 端口对客户机开放 7080 端口对访问 ip 开放
# netstat -ntlp | grep java
tcp 0 0 0.0.0.0:7080 0.0.0.0:* LISTEN 24037/java
tcp 0 0 0.0.0.0:7443 0.0.0.0:* LISTEN 24037/java
二、客户端安装：
现在包 hyperic-hq-agent-4.4.0-1509-x86_64-linux.tar
解压
#tar -zxvf hyperic-hq-agent-4.4.0-1509-x86_64-linux.tar
#mv hyperic-hq-agent-4.4.0 /root/soft/
编辑配置文件
#vim /root/soft/hyperic-hq-agent-4.4.0/conf/agent.properties
# 末尾添加：
agent.setup.camIP=192.168.138.1 #指向 server 端 IP
agent.setup.camPort=7080 #端口
agent.setup.camSSLPort=7443
agent.setup.camSecure=yes
agent.setup.camLogin=hqadmin #登陆账号
agent.setup.camPword=hqadmin #登陆密码
agent.setup.agentIP=192.168.138.134 #客户端 ip
agent.setup.agentPort=2144 #客户端监听端口
#/root/soft/hyperic-hq-agent-4.4.0/bin/hq-agent.sh start

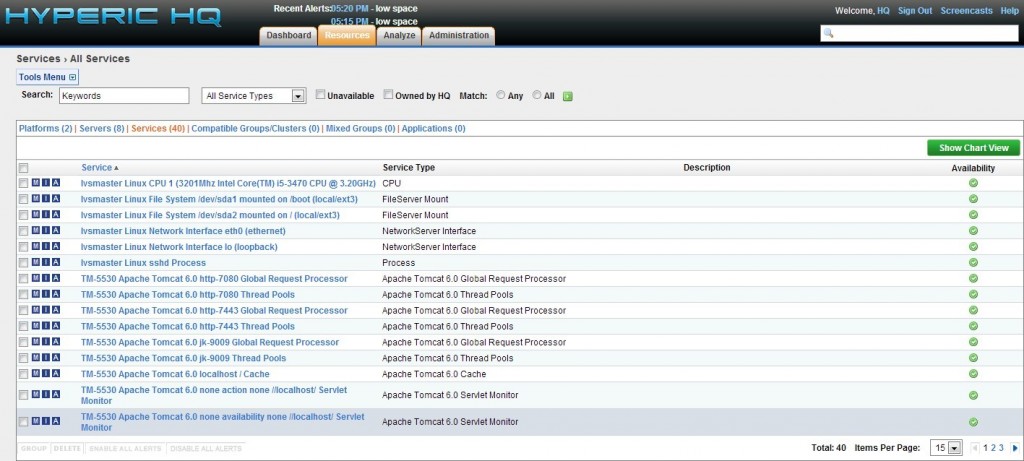

三、浏览器登陆
http://192.168.138.1:7080
