Nagios监控ESXI主机系统、硬件

212次阅读

共计 19442 个字符，预计需要花费 49 分钟才能阅读完成。

使用 Nagios 的扩展插件 check_esx3.pl、check_esxi_hardware.py 来监控 VMware ESX 服务器，check_esx3.pl 主要监控系统资源，例如 cpu、内存等使用情况，check——esxi_hardware.py 主要监控的是硬件资源。既可以实现监控单台 ESX(i)服务器，也可以监控 VirtualCenter/vCenter 服务器集群。当企业中已经部署虚拟数据中心 (vCenter) 时，应该监控 vCenter 而不是单台 ESX/vSphere 服务器。

安装：
1、安装关联库文件
[root@localhost ~]# yum -y install gcc openssl libssl libssl-dev per-doc rpm

2、下载 vmware vsphere sdk for perl 工具包：
check_esx3.pl 需要安装 vmware vsphere sdk for perl 工具包
https://my.vmware.com/group/vmware/details?productId=491&downloadGroup=SDKPERL600 需要注册登陆，根据你的操作系统下载对应的 32bit/64bit 版本。
[root@localhost src]# tar zxvf VMware-vSphere-SDK-for-Perl-4.0.0-161974.x86_64.tar.gz
[root@localhost src]# cd vmware-vsphere-cli-distrib
[root@localhost vmware-vsphere-cli-distrib]# ./vmware-install.pl

3、安装 check_esx3.pl

check_esx3.pl 存放至 nagios 安装目录下的 libexec 目录中：
http://exchange.nagios.org/directory/Plugins/Operating-Systems/*-Virtual-Environments/VMWare/Vmware-ESX-%26-VM-host/details
[root@localhost src]# mv check_esx3-0.5.pl /usr/local/nagios/libexec/
[root@localhost src]# cd /usr/local/nagios/libexec/
[root@localhost libexec]# chmod +x check_esx3-0.5.pl
[root@localhost libexec]# ./check_esx3-0.5.pl -help
Can’t locate Nagios/Plugin.pm in @INC ………
[root@localhost libexec]#

安装 Nagios::Plugin 插件
[root@localhost libexec]# perl -MCPAN -e ‘install Nagios::Plugin’
[root@localhost libexec]# ./check_esx3-0.5.pl -help
Can’t locate Nagios/Plugin.pm in @INC ………
[root@localhost libexec]#

安装 rpmforge-release
http://download.slogra.com/rpmforge-release-0.5.2-2.el5.rf.i386.rpm

[root@localhost libexec]# wget http://download.slogra.com/rpmforge-release-0.5.2-2.el5.rf.i386.rpm
[root@localhost libexec]# rpm -ivh rpmforge-release-0.5.2-2.el5.rf.i386.rpm

安装 perl 组件
[root@localhost libexec]# yum -y install perl-Params-Validate perl-Math-Calc-Units perl-Regexp-Commonperl-Class-Accessor perl-Config-Tiny perl-Nagios-Plugin.noarch
[root@localhost libexec]# ./check_esx3-0.5.pl -help
Can’t locate LWP/UserAgent.pm in @INC
[root@localhost libexec]#

安装插件 Bundle::LWP
[root@localhost libexec]# perl -MCPAN -eshell
cpan> install Bundle::LWP
Do you want to modify/update your configuration (y|n) ? [no] no
Shall I follow them and prepend them to the queue of modules we are processing right now? [yes] yes
cpan> exit

这里提示要不要对原有网络配置进行更新修改, 我们选择 no，这里提示须跟随他们和他们预队列中我们现在正在处理的模块吗, 直接输入 yes.
[root@localhost libexec]# ./check_esx3-0.5.pl -help
Can’t locate Zlib/Compress.pm in @INC
[root@localhost libexec]# perl -MCPAN -e ‘install Compress::Zlib’

安装脚本使用 cpan 安装 perl 模块，会有一些 perl 模块安装不上，这些安装不上的模块，得手动使用 cpan 去安装，若还安装不上那么就用 yum 去安装，例如 UUID，
error:installed manuallyfor use by vSphere CLI:
UUID 0.03 or newer

解决：
[root@localhost libexec]# yum install perl-SOAP-Lite perl-Data-Dumpperl-Class-MethodMaker perl-Crypt-SSLeay perl-libxml-perlperl-XML-LibXML-Common libuuid-devel uuid-perl -y
[root@localhost libexec]# perl -MCPAN -e’install UUID’
[root@localhost libexec]# ./check_esx3.pl -H 10.10.2.233 -u root-p ‘justin’ -l cpu
CHECK_ESX3.PL CRITICAL -Server version unavailable at ‘https://10.10.2.233:443/sdk/vimService.wsdl’ at/usr/share/perl5/VMware/VICommon.pm line 545.
[root@localhost libexec]# vim check_esx3.pl
#!/usr/bin/perl -w$ENV{PERL_LWP_SSL_VERIFY_HOSTNAME}=0;
#
# Nagios plugin to monitor vmware esxservers
[root@nagioslibexec]# ./check_esx3.pl -H 10.10.2.233 -u root -p ‘justin’ -l cpu
CHECK_ESX3.PLCRITICAL – Server version unavailable at ‘https://10.10.2.233:443/sdk/vimService.wsdl’ at /usr/lib/perl5/5.8.8/VMware/VICommon.pm line 545.

对这个问题的解决办法是添加一个参数，，以 check_esx3.pl 告诉 LWP 的，可以忽略不计，自签名的 SSL 证书（因为他们的 ESX / i 服务器的默认），根据提示在 check_esx3.pl 中添加一行 “$ENV{PERL_LWP_SSL_VERIFY_HOSTNAME} = 0;”
[root@nagioslibexec]# vim check_esx3.pl
$ENV{PERL_LWP_SSL_VERIFY_HOSTNAME} = 0;
#
# Nagios plugin to monitor vmware esx servers
#
# License: GPL
[root@nagioslibexec]# ./check_esx3.pl -H 10.10.2.233 -u root -p ‘justin’ -l cpu
CHECK_ESX3.PL OK -cpu usage=55.00 MHz (0.12%) | cpu_usagemhz=55.00Mhz;; cpu_usage=0.12%;;

check_esx3.pl 参数使用可以通过./check_esx3.pl –help 查看

4、安装 check_esxi_hardware.py
check_esxi_hardware.py 需要安装 python、python 的扩展包 pywbem、你的 Esxi 主机的 443，5989 端口必须对 nagios 监控端开放，
[root@nagioslibexec]# wget
[root@nagioslibexec]# chown nagios.nagios check_esxi_hardware.py
[root@nagioslibexec]# chmod 755 check_esxi_hardware.py
[root@nagioslibexec]# ./check_esxi_hardware.py
Traceback (most recent call last):
File “./check_esxi_hardware.py”, line 222, in <module>
import pywbem
ImportError: No module named pywbem
[root@nagioslibexec]# ./check_esxi_hardware.py -h
Traceback (most recent call last):
File “./check_esxi_hardware.py”, line 222, in <module>
import pywbem
ImportError: No module named pywbem</module></module>

pywbem 模块没有安装，安装 python 的第三方模块
http://downloads.sourceforge.net/project/pywbem/pywbem/pywbem-0.7/pywbem-0.7.0.tar.gz?r=http%3A%2F%2Fsourceforge.net%2Fprojects%2Fpywbem%2Ffiles%2Fpywbem%2F&ts=1299742557&use_mirror=voxel
1234567 [root@nagioslibexec]# wget
[root@nagioslibexec]# tar -zxvf pywbem-0.7.0.tar.gz
[root@nagioslibexec]# cd pywbem-0.7.0
[root@nagioslibexec]# python setup.py build
[root@nagioslibexec]# python setup.py install –record files.txt
[root@nagioslibexec]# ./check_esxi_hardware.py -H 10.10.2.233-U nagios -P nagios -V dell
OK – Server: Dell Inc. PowerEdge R610 s/n: XXXXXX System BIOS: XXXXXXXXXXX

如果使用 pywbem-0.8.0 版本可能导致我们的插件无法使用，python setup.py install –record files.txt 记录安装目录的目的就是为了方便卸载插件，cat files.txt | xargs rm -rf

使用 check_esx3.pl 和 check_esxi_hardware.py 都只需要在 Esxi 主机上建立只读的用户名和密码即可。使用./check——esx3.pl -helo 和 check_esxi_hardware.py -help 可以查看插件使用语法，
[root@localhost libexec]# ./check_esxi_hardware.py -help
Usage: check_esxi_hardware.py https://hostname user password system [verbose]
example: check_esxi_hardware.py https://my-shiny-new-vmware-server root fakepassword dell

or, using new style options:

usage: check_esxi_hardware.py -H hostname -U username -P password [-V system -v -p -I XX]
example: check_esxi_hardware.py -H my-shiny-new-vmware-server -U root -P fakepassword -V auto -I uk

or, verbosely:

usage: check_esxi_hardware.py –host=hostname –user=username –pass=password [–vendor=system –verbose –perfdata –html=XX]

Options:
–version show program’s version number and exit
-h, –help show this help message and exit

Mandatory parameters:
-H HOST, –host=HOST
report on HOST
-U USER, –user=USER
user to connect as
-P PASS, –pass=PASS
password, if password matches file:<path>, first line
of given file will be used as password

Optional parameters:
-V VENDOR, –vendor=VENDOR
Vendor code: auto, dell, hp, ibm, intel, or unknown
(default)
-v, –verbose print status messages to stdout (default is to be
quiet)
-p, –perfdata collect performance data for pnp4nagios (default is
not to)
-I XX, –html=XX generate html links for country XX (default is not to)
-t TIMEOUT, –timeout=TIMEOUT
timeout in seconds – no effect on Windows (default =
no timeout)
comma-separated list of elements to ignore
–no-power don’t collect power performance data
–no-volts don’t collect voltage performance data
–no-current don’t collect current performance data
–no-temp don’t collect temperature performance data
–no-fan don’t collect fan performance data
[root@localhost libexec]#

给 Esxi 主机设置只读用户

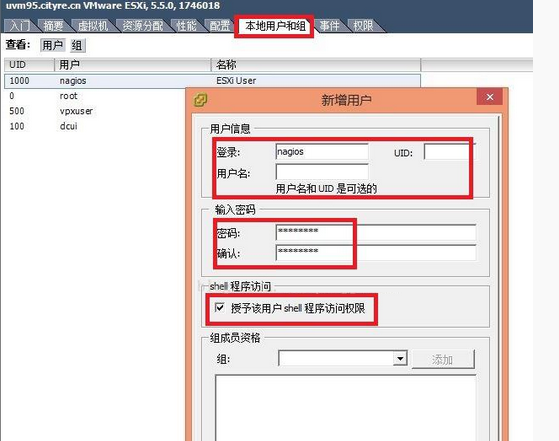

1）先登录 Esxi 主机，在“本地用户和组”标签中，空白处右键“添加”，即可添加用户。

Nagios 监控 ESXI 主机系统、硬件

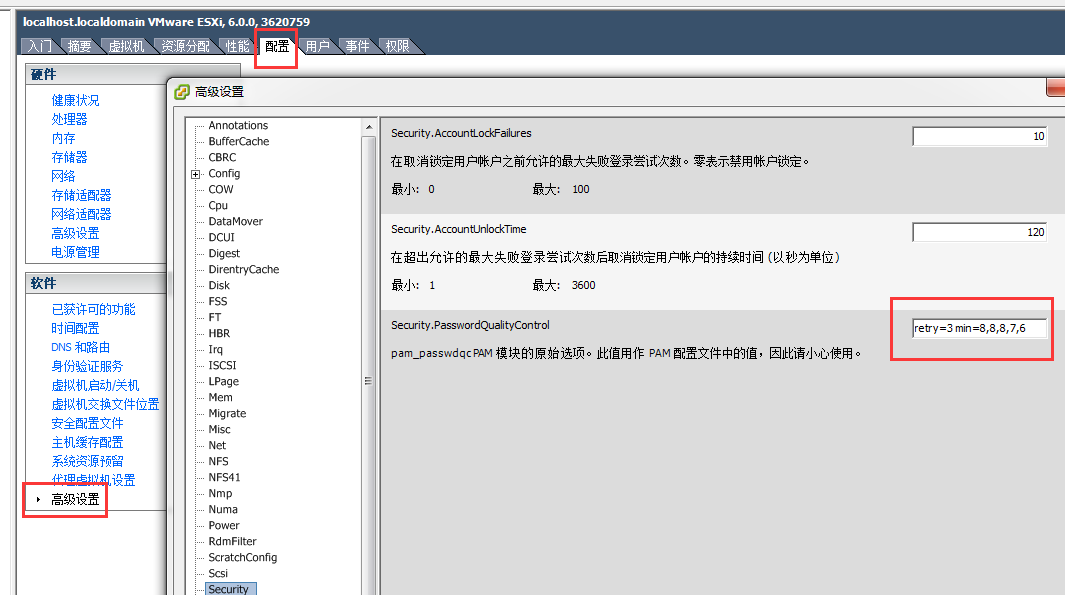

如果是 esxi6.0 以上需要修改下密码复杂度，需要修改 security 中密码的值为 retry=3 min=8,8,8,7,6

1、登录 ESXi Host 后，执行如下命令：
#vi /etc/pam.d/passwd

2、找到里面的内容，如下：
password requisite /lib/security/$ISA/pam_passwdqc.so retry=3 min=8,8,8,7,6
password requisite /lib/security/$ISA/pam_passwdqc.so retry=N min=N0,N1,N2,N3,N4

说明��
retry= 3 的意思是说可以尝试输入 3 次密码；
N0 = 12, 表示一种字符即可，但是最短也需要 12 位；
N1 = 10，密码至少要有 2 种字符类型，最短 10 位；
N2 = 8，密码最短需要 8 位；
N3 = 8，要求大小写和数字 3 种字符，最短 8 位；
N4 = 7，要求大小写、数字和特殊字符，且长度最少为 7 位；

Nagios 监控 ESXI 主机系统、硬件

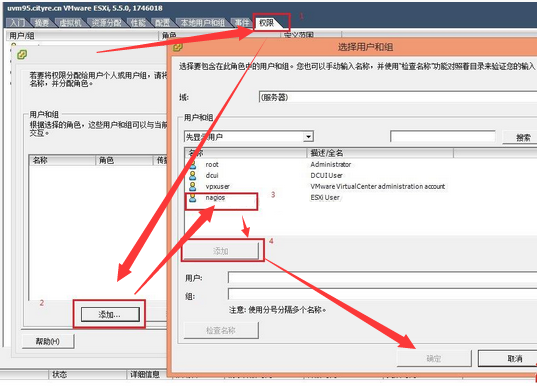

2）将 nagios 用户设置成“只读角色”。在“权限”标签中，空白处右键“添加权限”，然后按下图操作

Nagios 监控 ESXI 主机系统、硬件

测试
[root@nagios libexec]# ./check_esxi_hardware.py -H 10.10.2.233 -U nagios -P nagios -V dell
UNKNOWN: Authentication Error
[root@localhost libexec]# ./check_esxi_hardware.py -H 10.15.98.204 -U nagios -P nagios -V auto -t 90 -i “IPMI SEL”
Traceback (most recent call last):
File “./check_esxi_hardware.py”, line 593, in <module>
wbemclient = pywbem.WBEMConnection(hosturl, (user,password), no_verification=True)
TypeError: __init__() got an unexpected keyword argument ‘no_verification’
[root@localhost libexec]#

认证失败。在网上查到原因是 Esxi 版本不同差异导致。
解决方法：
ssh 登陆 Esxi 主机，Esxi 主机开启 ssh 功能点此
~ # cat /etc/security/access.conf
# This file is autogenerated and must not be edited.
+:dcui:ALL+:root:ALL
+:vpxuser:ALL
+:vslauser:ALL
-:nagios:ALL
-:ALL:ALL

将“-:nagios:ALL”去掉，在第二行加上“+:nagios:sfcb”，修改成如下
~ # cat /etc/security/access.conf
# This file is autogenerated and must not be edited.
+:dcui:ALL+:root:ALL
+:nagios:sfcb
+:vpxuser:ALL
+:vslauser:ALL
-:ALL:ALL

这种方式适合在不经常添加用户的情况下使用，只改一次即可；但是经常加用户可能会导致 access.conf 变化，需要设置计划任务添加“+:nagios:sfcb”
[root@nagioslibexec]# ./check_esxi_hardware.py -H 10.10.2.233-U nagios -P nagios -V dell
OK – Server: Dell Inc. PowerEdge R610 s/n: XXXXXX System BIOS: XXXXXXXXXXX

5、监控添加
1）先在 commands.cfg 中添加命令
[root@nagioslibexec]# vim /usr/local/nagios/etc/objects/commands.cfg
#check_esxi_hardware.py
define command {
command_name check_esxi_hardware
command_line $USER1$/check_esxi_hardware.py -H $HOSTADDRESS$ -U $ARG1$ -P $ARG2$ -V $ARG3$ -I isolutions -p -t 20
}

#check_esx3.pl
define command{
command_name check_esx3_cpu_usage
command_line $USER1$/check_esx3.pl -H $HOSTADDRESS$ -u $ARG1$ -p $ARG2$ -l cpu -s usage -w $ARG3$ -c $ARG4$
}
define command{
command_name check_esx3_mem_usage
command_line $USER1$/check_esx3.pl -H $HOSTADDRESS$ -u $ARG1$ -p $ARG2$ -l mem -s usage -w $ARG3$ -c $ARG4$
}
define command{
command_name check_esx3_swap_usage
command_line $USER1$/check_esx3.pl -H $HOSTADDRESS$ -u $ARG1$ -p $ARG2$ -l mem -s swap -w $ARG3$ -c $ARG4$
}
define command{
command_name check_esx3_net_usage
command_line $USER1$/check_esx3.pl -H $HOSTADDRESS$ -u $ARG1$ -p $ARG2$ -l net -s usage -w $ARG3$ -c $ARG4$
}
define command{
command_name check_esx3_vmfs
command_line $USER1$/check_esx3.pl -H $HOSTADDRESS$ -u $ARG1$ -p $ARG2$ -l vmfs -x EQ_LUN9,EQ_LUN8 -s $ARG3$ -w $ARG4$ -c $ARG5$ #-w 80%: -c 90%: 小于 80% 不检测 EQ_LUN8 EQ_LUN9
}
define command{
command_name check_esx3_runtime_status
command_line $USER1$/check_esx3.pl -H $HOSTADDRESS$ -u $ARG1$ -p $ARG2$ -l runtime -s status
}
define command{
command_name check_esx3_runtime_issues
command_line $USER1$/check_esx3.pl -H $HOSTADDRESS$ -u $ARG1$ -p $ARG2$ -l runtime -s issues
}
define command{
command_name check_esx3_dc_cpu_usage
command_line $USER1$/check_esx3.pl -D $ARG1$ -u $ARG2$ -p $ARG3$ -H $HOSTALIAS$ -l cpu -s usage -w $ARG4$ -c $ARG5$
}
define command{
command_name check_esx3_dc_mem_usage
command_line $USER1$/check_esx3.pl -D $ARG1$ -u $ARG2$ -p $ARG3$ -H $HOSTALIAS$ -l mem -s usage -w $ARG4$ -c $ARG5$
}

参考地址：https://nagios-plugins.org/doc/guidelines.html#THRESHOLDFORMAT
2）设置监控主机和服务

[root@nagioslibexec]# vim /usr/local/nagios/etc/10.10.2.233.cfg
define host{
use linux-server
host_name vSphere3
alias vSphere Host3(SSB412)
address 10.2.1.153
hostgroups ESX
icon_image vmware.png
icon_image_alt VMware vSphere (SSB412)
vrml_image vmware.jpg
statusmap_image vmware.gd2
2d_coords 800,900
parents RackSW_PDC_1
}
define service{
use generic-service
host_name VM-ESXi-01,VM-ESXi-02,vSphere1,vSphere2,vSphere3
service_description CPU Usage
check_command check_esx3_cpu_usage!nagios!password!100!110
}
define service{
use generic-service
host_name VM-ESXi-01,VM-ESXi-02,vSphere1,vSphere2,vSphere3
service_description Memory Usage
check_command check_esx3_mem_usage!nagios!password!100!110
}

以上大家做为参考，请以实际环境为准

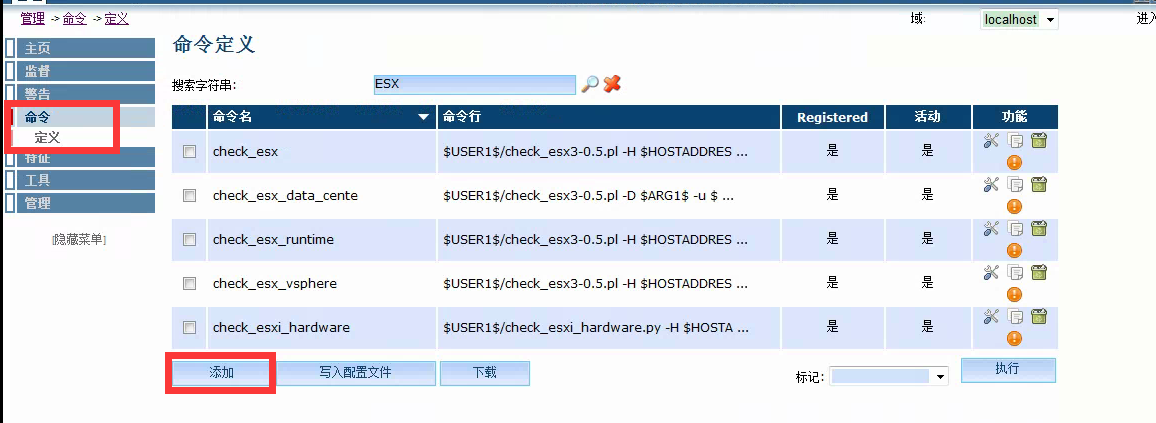

如果是用的 nagiosql，需要先在命令项里定义命令，类似 command.cfg 文件

Nagios 监控 ESXI 主机系统、硬件

再到监督 - 服务里定义服务

Nagios 监控 ESXI 主机系统、硬件

最后到监督 -hosts 里添加监控主机，选择要监控的服务

扩展：
check_esxi_hardware.py 检测时候有时候会提示 Service Check Timed Out，命令里加了 -t 也会报 timeout，后来查看 check_esxi_hardware.py 里 timeout=0 修改成 60 后好像不会报 timeout 了，后面继续观察。

本文永久更新链接地址：http://www.linuxidc.com/Linux/2017-05/143842.htm
