提交任务到Spark

共计 11058 个字符，预计需要花费 28 分钟才能阅读完成。

1. 场景

在搭建好 Hadoop+Spark 环境后，现准备在此环境上提交简单的任务到 Spark 进行计算并输出结果。搭建过程：http://www.linuxidc.com/Linux/2017-06/144926.htm

本人比较熟悉 Java 语言，现以 Java 的 WordCount 为例讲解这整个过程，要实现计算出给定文本中每个单词出现的次数。

2. 环境测试

在讲解例子之前，我想先测试一下之前搭建好的环境。

2.1 测试 Hadoop 环境

首先创建一个文件 wordcount.txt 内容如下：

Hello hadoop
hello spark
hello bigdata
yellow banana
red apple

然后执行如下命令：

hadoop fs -mkdir -p /Hadoop/Input（在 HDFS 创建目录）

hadoop fs -put wordcount.txt /Hadoop/Input（将 wordcount.txt 文件上传到 HDFS）

hadoop fs -ls /Hadoop/Input（查看上传的文件）

hadoop fs -text /Hadoop/Input/wordcount.txt（查看文件内容）

2.2Spark 环境测试

我使用 spark-shell，做一个简单的 WordCount 的测试。我就用上面 Hadoop 测试上传到 HDFS 的文件 wordcount.txt。

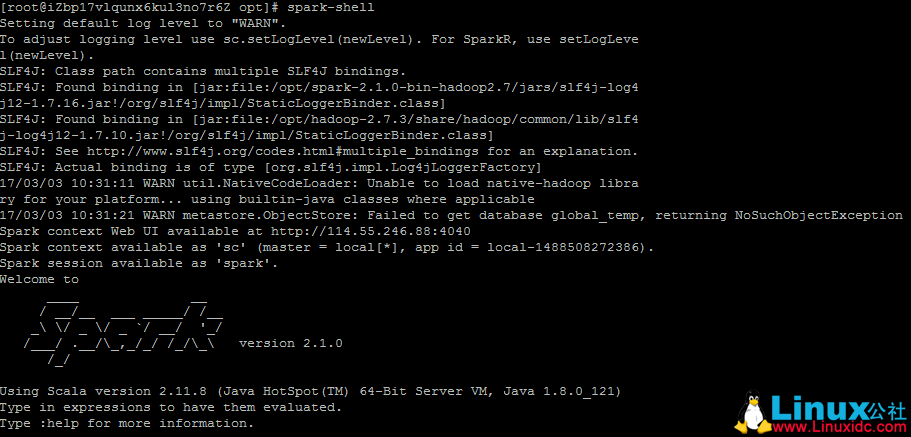

首先启动 spark-shell 命令：

spark-shell

提交任务到 Spark

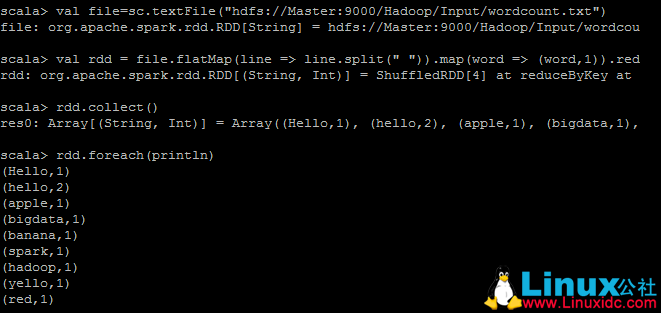

然后直接输入 scala 语句：

val file=sc.textFile(“hdfs://Master:9000/Hadoop/Input/wordcount.txt”)

val rdd = file.flatMap(line => line.split(” “)).map(word => (word,1)).reduceByKey(_+_)

rdd.collect()

rdd.foreach(println)

提交任务到 Spark

退出使用如下命令：

:quit

这样环境测试就结束了。

3.Java 实现单词计数

package com.example.spark;

import java.util.Arrays;
import java.util.Iterator;
import java.util.List;
import java.util.regex.Pattern;

import org.apache.spark.SparkConf;
import org.apache.spark.api.java.JavaPairRDD;
import org.apache.spark.api.java.JavaRDD;
import org.apache.spark.api.java.JavaSparkContext;
import org.apache.spark.api.java.function.FlatMapFunction;
import org.apache.spark.api.java.function.Function2;
import org.apache.spark.api.java.function.PairFunction;

import scala.Tuple2;

public final class WordCount {private static final Pattern SPACE = Pattern.compile("");

    public static void main(String[] args) throws Exception {SparkConf conf = new SparkConf().setAppName("kevin's first spark app");
        JavaSparkContext sc = new JavaSparkContext(conf);
        JavaRDD<String> lines = sc.textFile(args[0]).cache();
        JavaRDD<String> words = lines.flatMap(new FlatMapFunction<String, String>() {private static final long serialVersionUID = 1L;

            @Override
            public Iterator<String> call(String s) {return Arrays.asList(SPACE.split(s)).iterator();}
        });

        JavaPairRDD<String, Integer> ones = words.mapToPair(new PairFunction<String, String, Integer>() {private static final long serialVersionUID = 1L;

            @Override
            public Tuple2<String, Integer> call(String s) {return new Tuple2<String, Integer>(s, 1);
            }
        });

        JavaPairRDD<String, Integer> counts = ones.reduceByKey(new Function2<Integer, Integer, Integer>() {private static final long serialVersionUID = 1L;

            @Override
            public Integer call(Integer i1, Integer i2) {return i1 + i2;
            }
        });

        List<Tuple2<String, Integer>> output = counts.collect();
        for (Tuple2<?, ?> tuple : output) {System.out.println(tuple._1() + ":" + tuple._2());
        }

        sc.close();}
}

4. 任务提交实现

将上面 Java 实现的单词计数打成 jar 包 spark-example-0.0.1-SNAPSHOT.jar，并且将 jar 包上传到 Master 节点，我是将 jar 包上传到 /opt 目录下，本文将以两种方式提交任务到 spark，第一种是以 spark-submit 命令的方式提交任务，第二种是以 java web 的方式提交任务。

4.1 以 spark-submit 命令的方式提交任务

spark-submit –master spark://114.55.246.88:7077 –class com.example.spark.WordCount /opt/spark-example-0.0.1-SNAPSHOT.jar hdfs://Master:9000/Hadoop/Input/wordcount.txt

4.2 以 java web 的方式提交任务

我是用 spring boot 搭建的 java web 框架，实现代码如下：

1）新建 maven 项目 spark-submit

2）pom.xml 文件内容，这里要注意 spark 的依赖 jar 包要与 scala 的版本相对应，如 spark-core_2.11，这后面 2.11 就是你安装的 scala 的版本。

<?xml version="1.0"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.4.1.RELEASE</version>
    </parent>
    <artifactId>spark-submit</artifactId>
    <description>spark-submit</description>
    <properties>
        <start-class>com.example.spark.SparkSubmitApplication</start-class>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <java.version>1.8</java.version>
        <commons.version>3.4</commons.version>
        <org.apache.spark-version>2.1.0</org.apache.spark-version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>${commons.version}</version>
        </dependency>

        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-jasper</artifactId>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-Redis</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>com.jayway.jsonpath</groupId>
            <artifactId>json-path</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <exclusions>
                <exclusion>
                    <artifactId>spring-boot-starter-tomcat</artifactId>
                    <groupId>org.springframework.boot</groupId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jetty</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>org.eclipse.jetty.websocket</groupId>
                    <artifactId>*</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jetty</artifactId>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
        </dependency>
        <dependency>
            <groupId>org.eclipse.jetty</groupId>
            <artifactId>apache-jsp</artifactId>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-solr</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
        </dependency>

        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-core_2.11</artifactId>
            <version>${org.apache.spark-version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-sql_2.11</artifactId>
            <version>${org.apache.spark-version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-hive_2.11</artifactId>
            <version>${org.apache.spark-version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-streaming_2.11</artifactId>
            <version>${org.apache.spark-version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-client</artifactId>
            <version>2.7.3</version>
        </dependency>
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-streaming-kafka_2.11</artifactId>
            <version>1.6.3</version>
        </dependency>
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-graphx_2.11</artifactId>
            <version>${org.apache.spark-version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-assembly-plugin</artifactId>
            <version>3.0.0</version>
        </dependency>

        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-core</artifactId>
            <version>2.6.5</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.6.5</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-annotations</artifactId>
            <version>2.6.5</version>
        </dependency>

    </dependencies>
    <packaging>war</packaging>

    <repositories>
        <repository>
            <id>spring-snapshots</id>
            <name>Spring Snapshots</name>
            <url>https://repo.spring.io/snapshot</url>
            <snapshots>
                <enabled>true</enabled>
            </snapshots>
        </repository>
        <repository>
            <id>spring-milestones</id>
            <name>Spring Milestones</name>
            <url>https://repo.spring.io/milestone</url>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
        </repository>
        <repository>
            <id>maven2</id>
            <url>http://repo1.maven.org/maven2/</url>
        </repository>
    </repositories>
    <pluginRepositories>
        <pluginRepository>
            <id>spring-snapshots</id>
            <name>Spring Snapshots</name>
            <url>https://repo.spring.io/snapshot</url>
            <snapshots>
                <enabled>true</enabled>
            </snapshots>
        </pluginRepository>
        <pluginRepository>
            <id>spring-milestones</id>
            <name>Spring Milestones</name>
            <url>https://repo.spring.io/milestone</url>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
        </pluginRepository>
    </pluginRepositories>

    <build>
        <plugins>
            <plugin>
                <artifactId>maven-war-plugin</artifactId>
                <configuration>
                    <warSourceDirectory>src/main/webapp</warSourceDirectory>
                </configuration>
            </plugin>

            <plugin>
                <groupId>org.mortbay.jetty</groupId>
                <artifactId>jetty-maven-plugin</artifactId>
                <configuration>
                    <systemProperties>
                        <systemProperty>
                            <name>spring.profiles.active</name>
                            <value>development</value>
                        </systemProperty>
                        <systemProperty>
                            <name>org.eclipse.jetty.server.Request.maxFormContentSize</name>
                            <!-- - 1 代表不作限制 -->
                            <value>600000</value>
                        </systemProperty>
                    </systemProperties>
                    <useTestClasspath>true</useTestClasspath>
                    <webAppConfig>
                        <contextPath>/</contextPath>
                    </webAppConfig>
                    <connectors>
                        <connector implementation="org.eclipse.jetty.server.nio.SelectChannelConnector">
                            <port>7080</port>
                        </connector>
                    </connectors>
                </configuration>
            </plugin>
        </plugins>

    </build>
</project>

3）SubmitJobToSpark.java

package com.example.spark;

import org.apache.spark.deploy.SparkSubmit;

/**
 * @author kevin
 *
 */
public class SubmitJobToSpark {public static void submitJob() {String[] args = new String[] { "--master", "spark://114.55.246.88:7077", "--name", "test java submit job to spark", "--class", "com.example.spark.WordCount", "/opt/spark-example-0.0.1-SNAPSHOT.jar", "hdfs://Master:9000/Hadoop/Input/wordcount.txt" };
        SparkSubmit.main(args);
    }
}

4）SparkController.java

package com.example.spark.web.controller;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;

import com.example.spark.SubmitJobToSpark;

@Controller
@RequestMapping("spark")
public class SparkController {private Logger logger = LoggerFactory.getLogger(SparkController.class);

    @RequestMapping(value = "sparkSubmit", method = {RequestMethod.GET, RequestMethod.POST})
    @ResponseBody
    public String sparkSubmit(HttpServletRequest request, HttpServletResponse response) {logger.info("start submit spark tast...");
        SubmitJobToSpark.submitJob();
        return "hello";
    }

}
