Tengine 部分特性

nginx -m 查看所有已经加载的模块，static 说明已经安装的，shared 说明是动态安装的；
nginx 架构是模块化的，除了主模块，其他模块都需在安装时进行编译安装，也可在安装后进行编译安装；
tengine 完全兼容 nginx 的配置；
tengine 实现动态加载模块，不需重新编译，就可以实现安装新的模块。动态模块功能会被默认安装。而 nginx 不支持模块动态加载，需要编译重启；

首先下载 tengine-2.2.0.tar.gz； 下载链接：

可以到 Linux 公社资源站下载：

—————————————— 分割线 ——————————————

免费下载地址在 http://linux.linuxidc.com/

用户名与密码都是www.linuxidc.com

具体下载目录在 /2017 年资料 / 2 月 /23 日 /Tengine 编译安装部署详解 /

下载方法见 http://www.linuxidc.com/Linux/2013-07/87684.htm

—————————————— 分割线 ——————————————

# 安装编译所需环境：

yum groupinstall “development Tools” “Server Platform Development” -y

# 安装编译所需的扩展模块：

yum -y install zlib-devel pcre-devel openssl-devel

# 注释

zlib-devel 扩展模块：支持压缩

pcre-devel 扩展模块：支持 url 重写，pool 扩展

openssl-devel 扩展模块：支持 https 协议

# 查看编译所支持的模块(个别常用的)：

[root@linuxidc tengine-2.2.0]# ./configure –help | less
–prefix=PATH set installation prefix #指定安装路径
–sbin-path=PATH set nginx binary pathname #nginx 二进制启动脚本路径
–conf-path=PATH set nginx.conf pathname #conf 配置文件路径
–error-log-path=PATH set error log pathname #错误日志路径
–pid-path=PATH set nginx.pid pathname #pid 存放路径
–lock-path=PATH set nginx.lock pathname #锁文件存放路径
–without-http disable HTTP server #提供 http 服务，默认开启
–without-http-cache disable HTTP cache #提供 http 缓存服务，默认开启
–without-http_stub_status_module disable ngx_http_stub_status_module #ngixn 自带的状态页面，默认关闭
–with-http_gzip_static_module enable ngx_http_gzip_static_module #压缩木块

编译安装 tengine:

[root@linuxidc tengine-2.2.0]# ./configure –prefix=/usr/local/nginx –sbin-path=/usr/local/nginx/sbin/nginx –conf-path=/usr/local/nginx/conf/nginx.conf –error-log-path=/usr/local/nginx/log/error.log –http-log-path=/usr/local/nginx/log/access.log –pid-path=/usr/local/nginx/nginx.pid –lock-path=/usr/local/nginx/lock/nginx.lock –user=nginx –group=nginx –with-http_ssl_module –with-http_flv_module –with-http_stub_status_module –with-http_gzip_static_module

# 开启 4 个进程编译安装：

[root@linuxidc tengine-2.2.0]# make -j 4 && make install

配置文件部分：

# 修改 nginx.conf 文件中的 http 模块的配置, 原有的文件可以 mv 做个备份。

vim nginx.conf
user root;
worker_processes 4;
error_log /usr/local/nginx/log/error.log;
pid /usr/local/nginx/log/nginx.pid;
events {
worker_connections 10240;
use epoll;
}
http {
include mime.types;
default_type application/octet-stream;
log_format main ‘$remote_addr – $remote_user [$time_local] $server_name “$request”‘
‘$status $body_bytes_sent “$http_referer” ‘
‘”$http_user_agent” “$http_x_forwarded_for” “time:$request_time”‘;
access_log /usr/local/nginx/log/access.log main;
client_max_body_size 500m;
sendfile on;
keepalive_timeout 300;
gzip on;
gzip_disable “msie6”;
gzip_proxied any;
gzip_min_length 2048;
gzip_comp_level 4;
gzip_types text/plain application/x-javascript application/javascript text/javascript text/css application/xml application/json image/jpeg image/gif image/png;
include /usr/local/nginx/conf/conf.d/*.conf;
include conf.d/*.conf; #当然也可以改为相对路径
}

#nginx 启动脚本, 拷贝 nginx 的或者网上复制一份启动脚本，自己修改下。如下

[root@linuxidc ~]# cat /etc/init.d/nginx
#!/bin/bash
#
# nginx – this script starts and stops the nginx daemon
#
# chkconfig: – 85 15
# description: Nginx is an HTTP(S) server, HTTP(S) reverse
# proxy and IMAP/POP3 proxy server
# processname: nginx
# config: /etc/nginx/nginx.conf
# config: /etc/sysconfig/nginx
# pidfile: /var/run/nginx.pid
# Source function library.
. /etc/rc.d/init.d/functions
# Source networking configuration.
. /etc/sysconfig/network
# Check that networking is up.
[“$NETWORKING” = “no”] && exit 0
TENGINE_HOME=”/usr/local/nginx/”
nginx=$TENGINE_HOME”sbin/nginx”
prog=$(basename $nginx)
NGINX_CONF_FILE=$TENGINE_HOME”conf/nginx.conf”
[-f /etc/sysconfig/nginx] && /etc/sysconfig/nginx
lockfile=/usr/local/nginx/lock/nginx.lock
start() {
[-x $nginx] || exit 5
[-f $NGINX_CONF_FILE] || exit 6
echo -n $”Starting $prog: “
daemon $nginx -c $NGINX_CONF_FILE
retval=$?
echo
[$retval -eq 0] && touch $lockfile
return $retval
}
stop() {
echo -n $”Stopping $prog: “
killproc $prog -QUIT
retval=$?
echo
[$retval -eq 0] && rm -f $lockfile
return $retval
killall -9 nginx
}
restart() {
configtest || return $?
stop
sleep 1
start
}
reload() {
configtest || return $?
echo -n $”Reloading $prog: “
killproc $nginx -HUP
RETVAL=$?
echo
}
force_reload() {
restart
}
configtest() {
$nginx -t -c $NGINX_CONF_FILE
}
rh_status() {
status $prog
}
rh_status_q() {
rh_status >/dev/null 2>&1
}
case “$1” in
start)
rh_status_q && exit 0
$1
;;
stop)
rh_status_q || exit 0
$1
;;
restart|configtest)
$1
;;
reload)
rh_status_q || exit 7
$1
;;
force-reload)
force_reload
;;
status)
rh_status
;;
condrestart|try-restart)
rh_status_q || exit 0
;;
*)
echo $”Usage: $0 {start|stop|status|restart|condrestart|try-restart|reload|force-reload|configtest}”
exit 2
esac

# 提示锁目录文件不存在

[root@linuxidc ~]# service nginx start
正在启动 nginx：[确定]
touch: 无法创建 ”/usr/local/nginx/lock/nginx.lock”: 没有那个文件或目录

# 创建锁目录，重新启动 nginx

[root@linuxidc ~]# mkdir /usr/local/nginx/lock/
[root@linuxidc ~]# service nginx restart
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful
停止 nginx：[确定]
正在启动 nginx：[确定]

# 创建一个静态 web 服务器：

[root@linuxidc conf.d]# cat static.conf
server {
listen 80 default_server;
server_name _;
location /{
root /data/company/;
index index.html index.htm;
}
}
server {
listen 81 default_server;
server_name _;
location /{
root /data/www/;
index index.html index.htm;
}
}

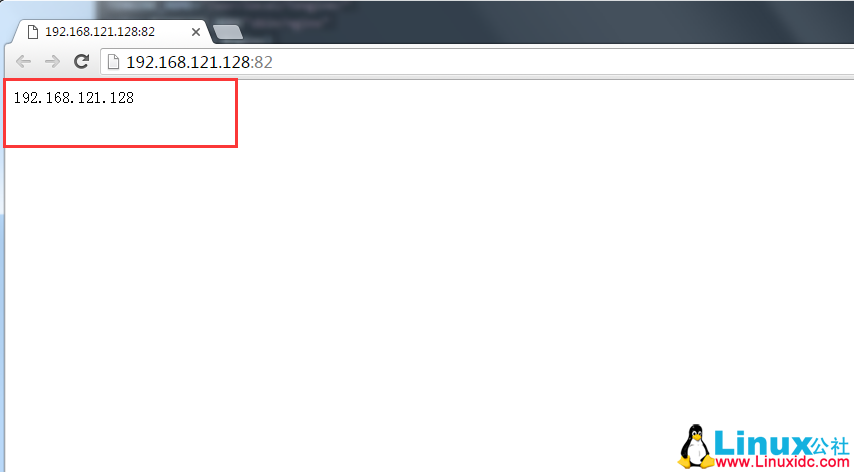

server {
listen 82 default_server;
server_name _;
location /{
root /data/linuxidc/;
index index.html index.htm;
}
}
