本实例主要针对 Oracle 表空间饱满问题处理方法做个步骤分享。

一、告警信息

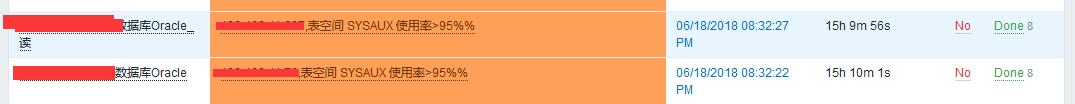

收到 zabbix 告警信息，表空间 SYSAUX 使用率 >95%%，系统表空间 sysaux 使用率超过了 95%。

Oracle 表空间 SYSAUX 使用率很高解决案例

二、处理步骤

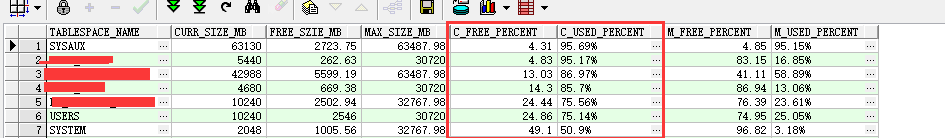

1. 登录具体数据库做相应的数据库空间使用率查询

set line 200;
set pagesize 20000;
set feedback off;
col tablespace_name for a20;
col c_free_percent for a12;
col c_used_percent for a12;
col m_free_percent for a12;
col m_USED_PERCENT for a12;
select d.tablespace_name,round(d.MB_current_Bytes,2) Curr_Size_MB,round(f.free_mb_bytes,2) Free_Szie_MB,round(d.MB_maxbytes,2) MAX_Size_MB,round((f.free_mb_bytes/d.MB_current_Bytes)*100,2) c_free_percent,round((d.MB_current_Bytes-f.free_mb_bytes)/d.MB_current_Bytes,4)*100 || ‘%’ c_used_percent,round(((d.MB_maxbytes-d.MB_current_Bytes+f.free_mb_bytes)/d.MB_maxbytes)*100,2) m_free_percent,round((d.MB_current_Bytes-f.free_mb_bytes)/d.MB_maxbytes,4)*100 || ‘%’ m_used_percent
from (select tablespace_name,sum(bytes/1024/1024) MB_current_Bytes,sum(maxbytes/1024/1024) MB_maxbytes from dba_data_files group by tablespace_name ) d,(select tablespace_name,sum(bytes/1024/1024) free_mb_bytes from dba_free_space group by tablespace_name) f
where d.tablespace_name=f.tablespace_name
order by c_free_percent ;

Oracle 表空间 SYSAUX 使用率很高解决案例

2. 查询表空间对应的对象占用情况

select OWNER,segment_name,segment_type,PARTITION_NAME,bytes/1024/1024/1024 Size_GB from dba_segments where tablespace_name=’SYSAUX’ order by Size_GB desc

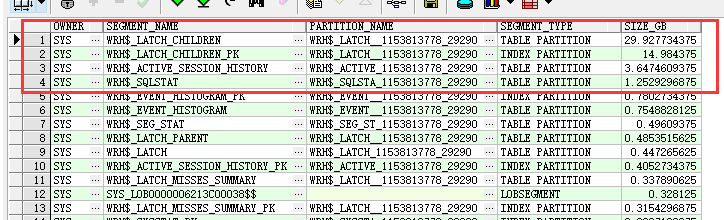

3. 根据具体大对象做排查，对可以清理的相关数据清理

根据上述 SQL 查到的大对象主要是

1 SYS WRH$_LATCH_CHILDREN WRH$_LATCH__1153813778_29290 TABLE PARTITION 29.927734375
2 SYS WRH$_LATCH_CHILDREN_PK WRH$_LATCH__1153813778_29290 INDEX PARTITION 14.984375
3 SYS WRH$_ACTIVE_SESSION_HISTORY WRH$_ACTIVE_1153813778_29290 TABLE PARTITION 3.6474609375
4 SYS WRH$_SQLSTAT WRH$_SQLSTA_1153813778_29290 TABLE PARTITION 1.2529296875

WRH$_LATCH_CHILDREN 表示快照使用的，其中分区 1153813778 是 DBID，29290 是快照 ID

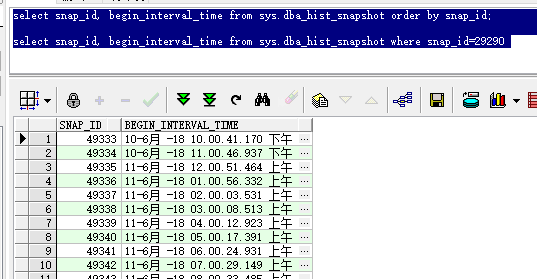

查看 29290 的快照 ID 是什么时间的

select snap_id, begin_interval_time from sys.dba_hist_snapshot order by snap_id;

select snap_id, begin_interval_time from sys.dba_hist_snapshot where snap_id=29290

Oracle 表空间 SYSAUX 使用率很高解决案例

4. 清空分区 WRH$_LATCH__1153813778_29290

select * from WRH$_LATCH_CHILDREN partition (WRH$_LATCH__1153813778_29290);

alter table WRH$_LATCH_CHILDREN truncate partition WRH$_LATCH__1153813778_29290;

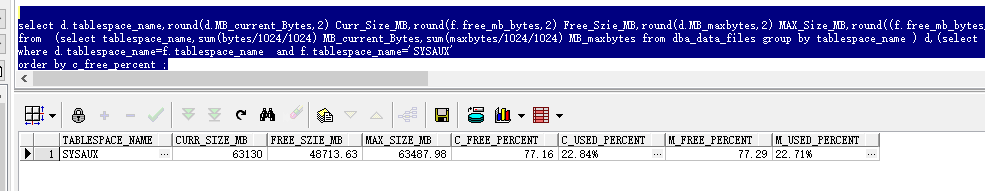

5. 清理后表空间查看

select d.tablespace_name,round(d.MB_current_Bytes,2) Curr_Size_MB,round(f.free_mb_bytes,2) Free_Szie_MB,round(d.MB_maxbytes,2) MAX_Size_MB,round((f.free_mb_bytes/d.MB_current_Bytes)*100,2) c_free_percent,round((d.MB_current_Bytes-f.free_mb_bytes)/d.MB_current_Bytes,4)*100 || ‘%’ c_used_percent,round(((d.MB_maxbytes-d.MB_current_Bytes+f.free_mb_bytes)/d.MB_maxbytes)*100,2) m_free_percent,round((d.MB_current_Bytes-f.free_mb_bytes)/d.MB_maxbytes,4)*100 || ‘%’ m_used_percent
from (select tablespace_name,sum(bytes/1024/1024) MB_current_Bytes,sum(maxbytes/1024/1024) MB_maxbytes from dba_data_files group by tablespace_name ) d,(select tablespace_name,sum(bytes/1024/1024) free_mb_bytes from dba_free_space group by tablespace_name) f
where d.tablespace_name=f.tablespace_name and f.tablespace_name=’SYSAUX’order by c_free_percent ;

Oracle 表空间 SYSAUX 使用率很高解决案例

三、脚本附录

1. 表空间 segment 大小查询

select OWNER,segment_name,PARTITION_NAME,segment_type,bytes/1024/1024/1024 Size_GB from dba_segments where tablespace_name=’SYSAUX’ order by Size_GB desc

2. 表空间使用率查询

set line 200;
set pagesize 20000;
set feedback off;
col tablespace_name for a20;
col c_free_percent for a12;
col c_used_percent for a12;
col m_free_percent for a12;
col m_USED_PERCENT for a12;
select d.tablespace_name,round(d.MB_current_Bytes,2) Curr_Size_MB,round(f.free_mb_bytes,2) Free_Szie_MB,round(d.MB_maxbytes,2) MAX_Size_MB,round((f.free_mb_bytes/d.MB_current_Bytes)*100,2) c_free_percent,round((d.MB_current_Bytes-f.free_mb_bytes)/d.MB_current_Bytes,4)*100 || ‘%’ c_used_percent,round(((d.MB_maxbytes-d.MB_current_Bytes+f.free_mb_bytes)/d.MB_maxbytes)*100,2) m_free_percent,round((d.MB_current_Bytes-f.free_mb_bytes)/d.MB_maxbytes,4)*100 || ‘%’ m_used_percentfrom (select tablespace_name,sum(bytes/1024/1024) MB_current_Bytes,sum(maxbytes/1024/1024) MB_maxbytes from dba_data_files group by tablespace_name ) d,(select tablespace_name,sum(bytes/1024/1024) free_mb_bytes from dba_free_space group by tablespace_name) fwhere d.tablespace_name=f.tablespace_name order by c_free_percent ;

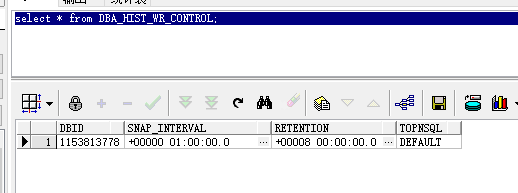

3. 查看快照 ID、查看快照设置信息、设置快照信息

select snap_id, begin_interval_time from sys.dba_hist_snapshot order by snap_id;select * from DBA_HIST_WR_CONTROL;begin
DBMS_WORKLOAD_REPOSITORY.MODIFY_SNAPSHOT_SETTINGS(retention =>43200,interval =>30, topnsql =>’MAXIMUM’);
end;
/

Oracle 表空间 SYSAUX 使用率很高解决案例

4. 统计信息清理

exec dbms_stats.purge_stats(systimestamp -11);

：
